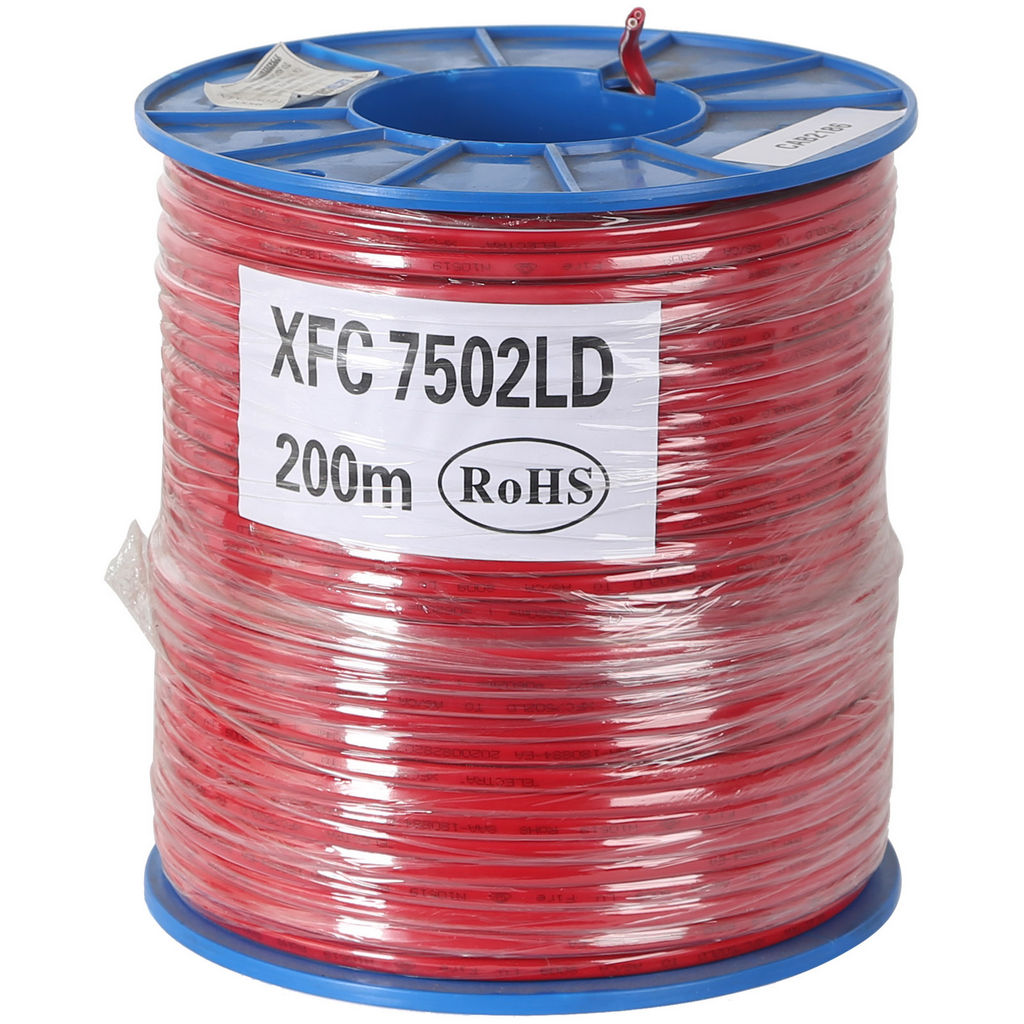

16AWG DOUBLE INSULATED FIRE CABLE 250V 15A

    $269.00

  • Order Code: CAB2186
  • Availability: Limited Stock - Please Call

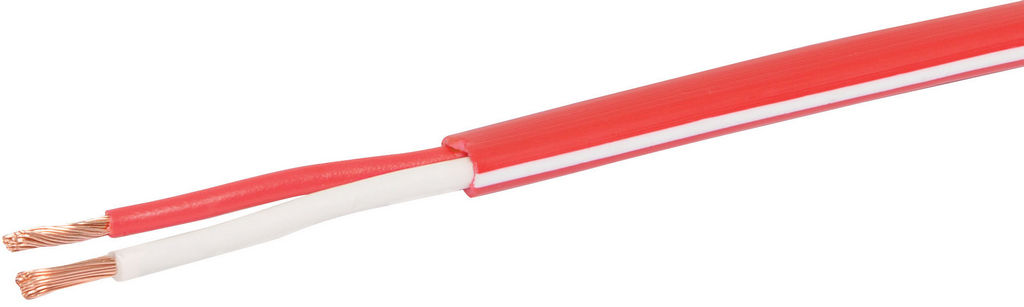

  • ELECTRAFIRE™ 7/0.5 x 2-CORE RED FLAT CU CABLE WITH WHITE STRIPE

  • General-purpose double PVC-insulated figure-8 cable suitable for speakers, security systems, fire alarms, smoke detectors and other low-voltage applications. Separate conductors with a non-bonded sheath. Red and white-coloured cores and a white stripe provide easy identification to avoid polarity-reversals during installation. Each conductor has 7 strands of 0.50mm-diameter copper wire, giving an overall conductor size of 1.5mm² (16AWG).

    • Size: 2 by 7 strands of 0.50mm
    • Voltage Rating 250V AC
    • Max Current Rating: 15A
    • Insulation material: PVC - V75 PVC
    • Conductor Area: 1.5mm2
    • Insulation: 0.6mm
    • Sheath: 0.8mm
    • Size: 4.3x7.0
    • DC resistance: 13.6 (@ 20°C Ω/km)
    • Roll Size: 200m.

  • Read / Show More
    Related Products for 16AWG DOUBLE INSULATED FIRE CABLE 250V 15A

    Related Products : View Product Group Page

    16AWG DOUBLE INSULATED FIRE CABLE 250V 15A

    Found in Category : Wire & Cable

    Product Specs for 16AWG DOUBLE INSULATED FIRE CABLE 250V 15A

    Colour Red
    Length 200M
    Manufacturer Redback
    Note. NOTE. This cable is not SAA certified and should not be used for applications where approved cables are required, eg Domestic or Commercial buildings.

    No downloads currently available for 16AWG DOUBLE INSULATED FIRE CABLE 250V 15A

    Please contact us with your download requirements,e.g. User Manual, Data Sheet, etc and will get back to you.
