2X2 PORT HYBRID COMBINER N FEMALE
2X2 PORT HYBRID COMBINER N FEMALE
2X2 PORT HYBRID COMBINER N FEMALE
2X2 PORT HYBRID COMBINER N FEMALE

2X2 PORT HYBRID COMBINER N FEMALE

    $276.00

- +
BUY NOW
  • Order Code: IBC-PT-00108
  • Availability: Please Call

    • 700-3800MHz

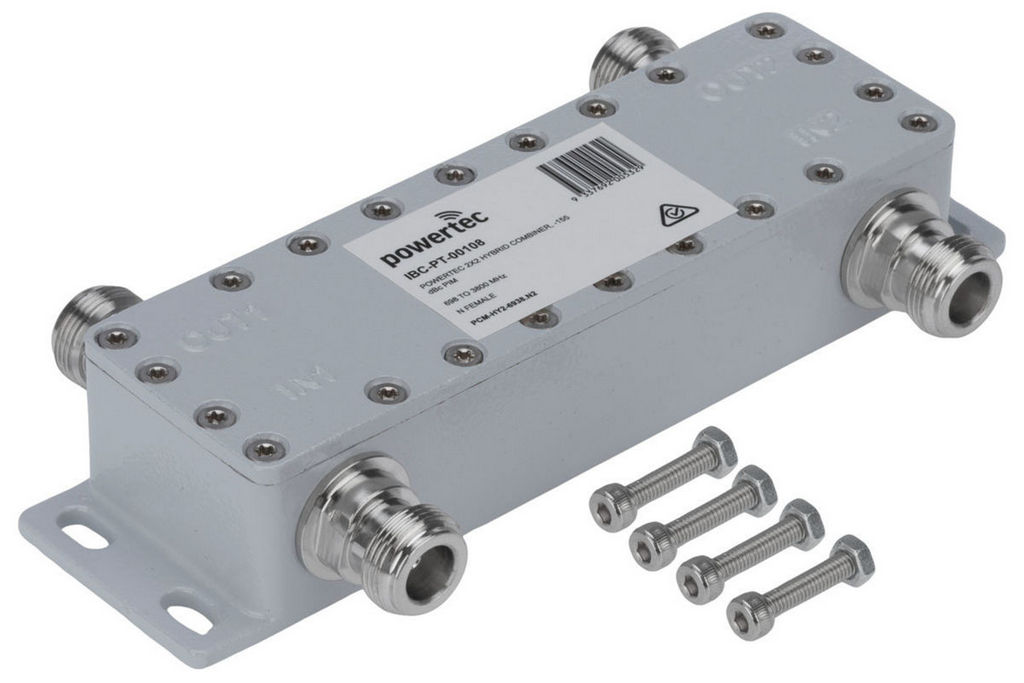

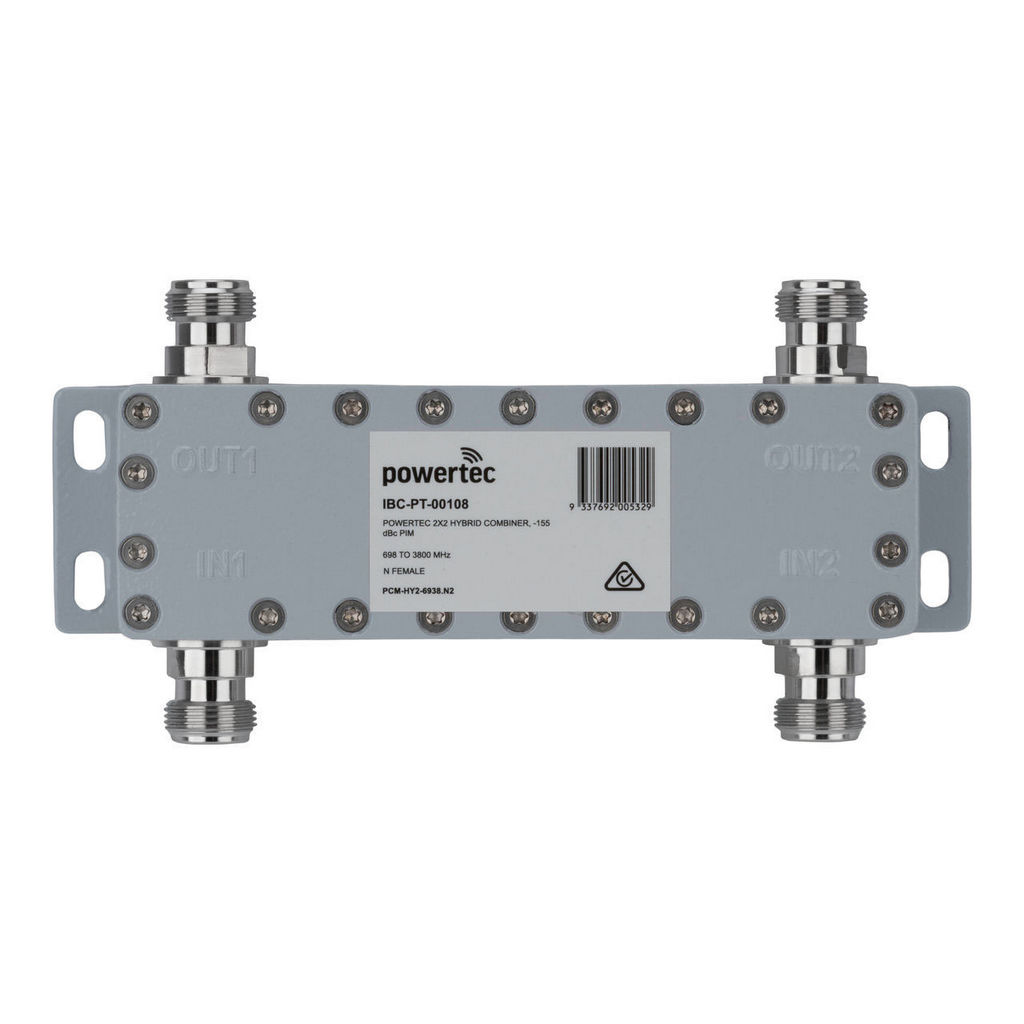

    Power up your network with Powertec's 2x2 Hybrid Combiner, offering seamless connectivity from 700-3800MHz. With N Female connectors and superior -155dBc performance.

  • Hybrid Couplers are used to develop advanced RF transmission systems where interaction-free signal combining is required. 2x2 couplers are typically used as an effective means of combining two radio carriers. The unit has two input ports which feed two coupled output ports.
    This 2x2 Hybrid Coupler has been developed for use as a 4G-5G MNC in passive in-building coverage systems, along with supporting high powered defence and aerospace technologies. The unit supports a wide frequency range from 700 to 3800 MHz, extremely low intermodulation with a -155 dBc PIM rating, and using latest generation 4.3-10 connectors.

    • Covers 4G/5G frequencies from 700 to 3800 MHz.
    • 2x2 Matrix for 3 dB interaction-free coupling.
    • Low PIM -153 dBc.

    • Read / Show More
    Related Products for 2X2 PORT HYBRID COMBINER N FEMALE

    Related Products : View Product Group Page

    2X2 PORT HYBRID COMBINER N FEMALE

    Found in Category : Cellular Reception Extenders

    Related Products
    4X4 PORT HYBRID COMBINER N FEMALE
    Order No: ACC-BH-00033
    $499.00
    Add To Cart

    Product Specs for 2X2 PORT HYBRID COMBINER N FEMALE

    Dimensions 159x102x30mm
    Freq. 698-3800MHz
    Impedance 50Ω
    Input 2x N-Female
    Insertion Loss ≤0.25dB
    IP Rating IP67
    Manufacturer Powertech
    Output 2x N-Female
    VSWR ≤1.251
