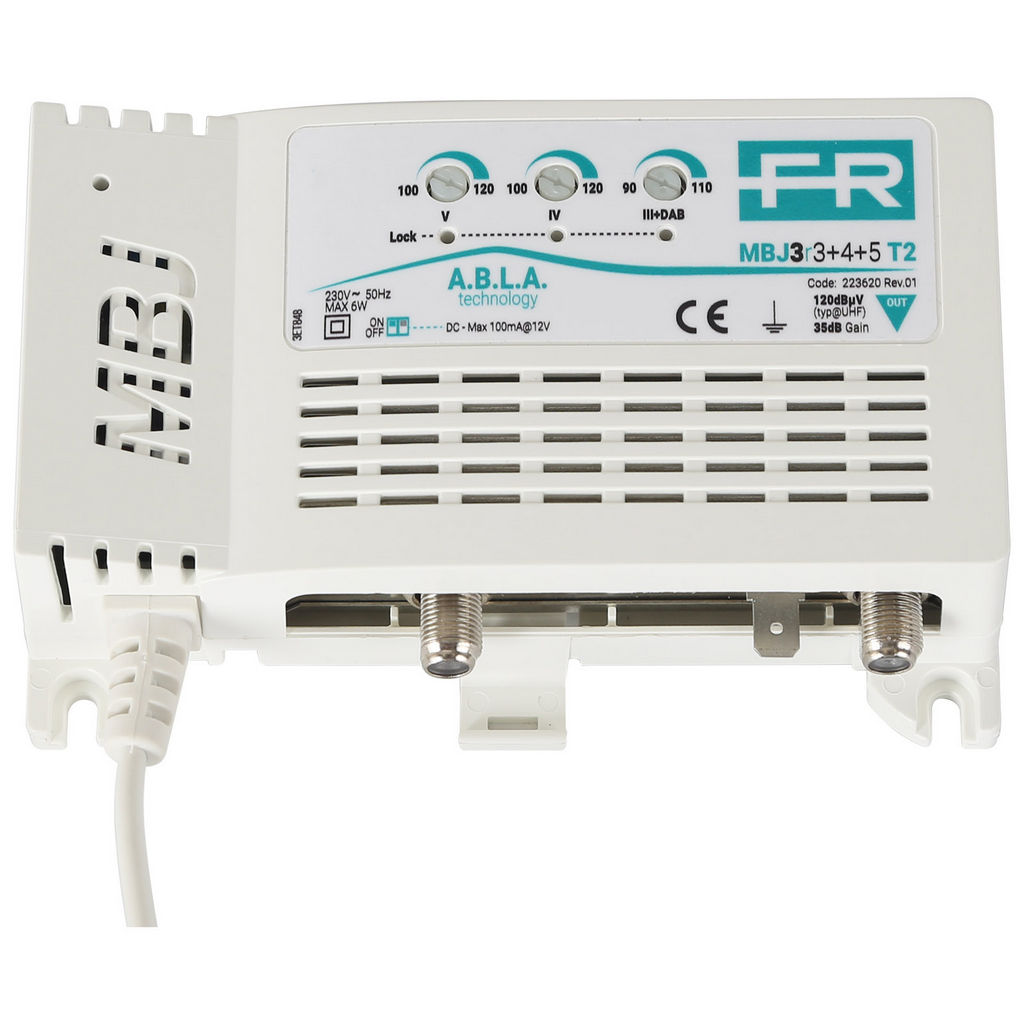

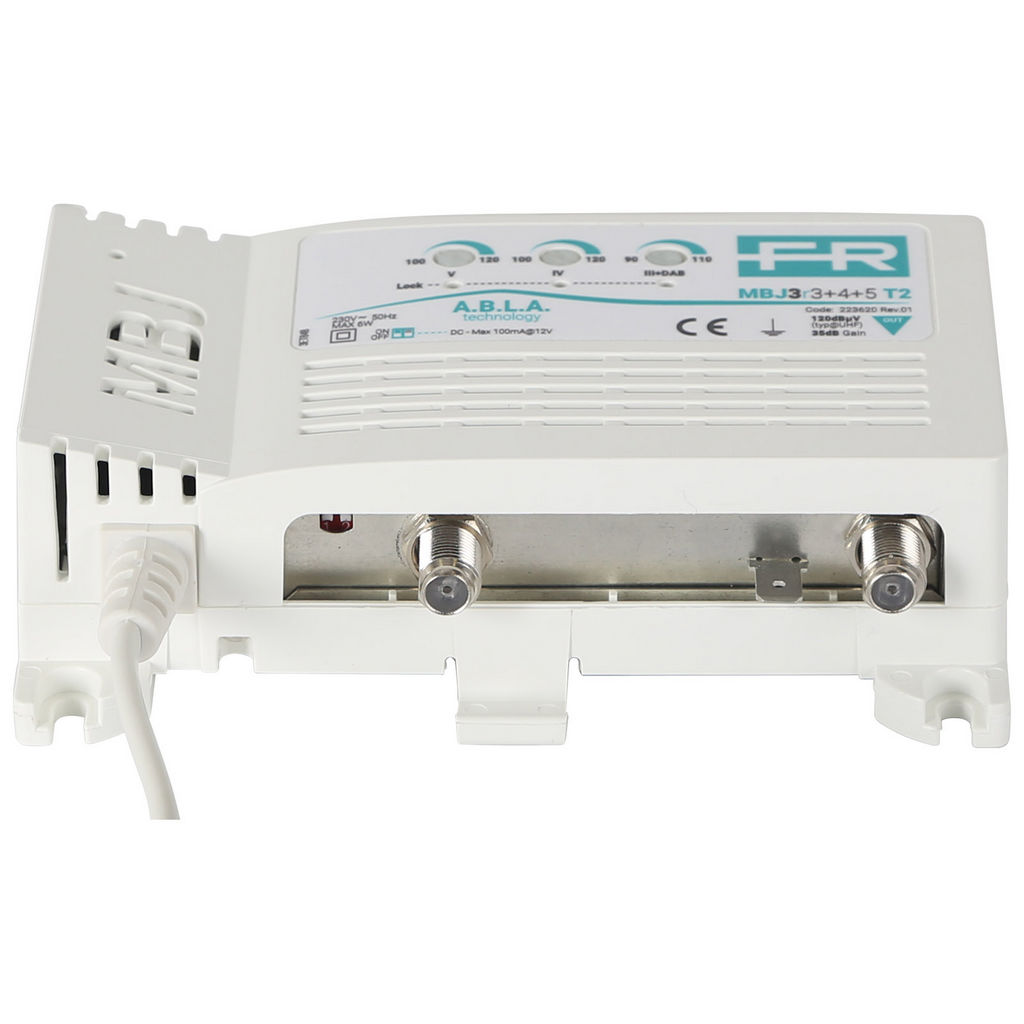

35dB TRIPLE BAND DISTRIBUTION AMPLIFIER

    $259.00

  • Order Code: MBJ3R345UT2
  • Availability: In Stock
  • FRACARRO PROFESSIONAL GRADE

    A.B.L.A. functionality is an automatic gain control for consistant performance. FRACARRO's exclusive system for maintaining the set output level constant even when the level of each input changes (independent A.B.L.A. circuits for each band) with output level stabilisation even for high variations in the input TV signal. Boosts when a signal drops due to weather conditions, but does not overload the TV tuner when the siganl strength returns.

  • 1-input (III+DAB+IV+V) multiband TV indoor amplifier with 35dB gain and up to 120dBμV output level on UHF band. Separate band amplification with independent level adjustment (20dB) for each band. T2 technology with UHF cut band for LTE 4G @790MHz and 5G @694MHz. Mains 240Vac powered. Switched 12Vdc power injector (on input connector).

    • Triple band booster with individual gain presets ( Bands III, IV, V).
    • Patented Auto-Gain technology (on each band) Fracarro ABLA®.
    • Protective ABS fireproof and flame retardant (Class V0) enclosure.
    • Screw base or for mounting on a standard DIN rail if required.
    • 240Vac power supply with full safety protected circuits.
    • Option for remote power supply on input connector (100mA).
    • ...

  • Read / Show More
    Related Products for 35dB TRIPLE BAND DISTRIBUTION AMPLIFIER

    Related Products : View Product Group Page

    35dB TRIPLE BAND DISTRIBUTION AMPLIFIER

    Found in Category : TV Reception Accessories

    Product Specs for 35dB TRIPLE BAND DISTRIBUTION AMPLIFIER

    Manufacturer Fracarro
    Dimensions 135x82x39mm
    Freq. 174-230, 470-590, 590-694MHz
    IP Rating IP20
    Filter 5G
    I/O 'F' connectors
    Input Single
    UHF 35dB
    VHF 35dB
    DescriptionFileSize
    Datasheet MBJ3R345UT2.pdf 294 KB
