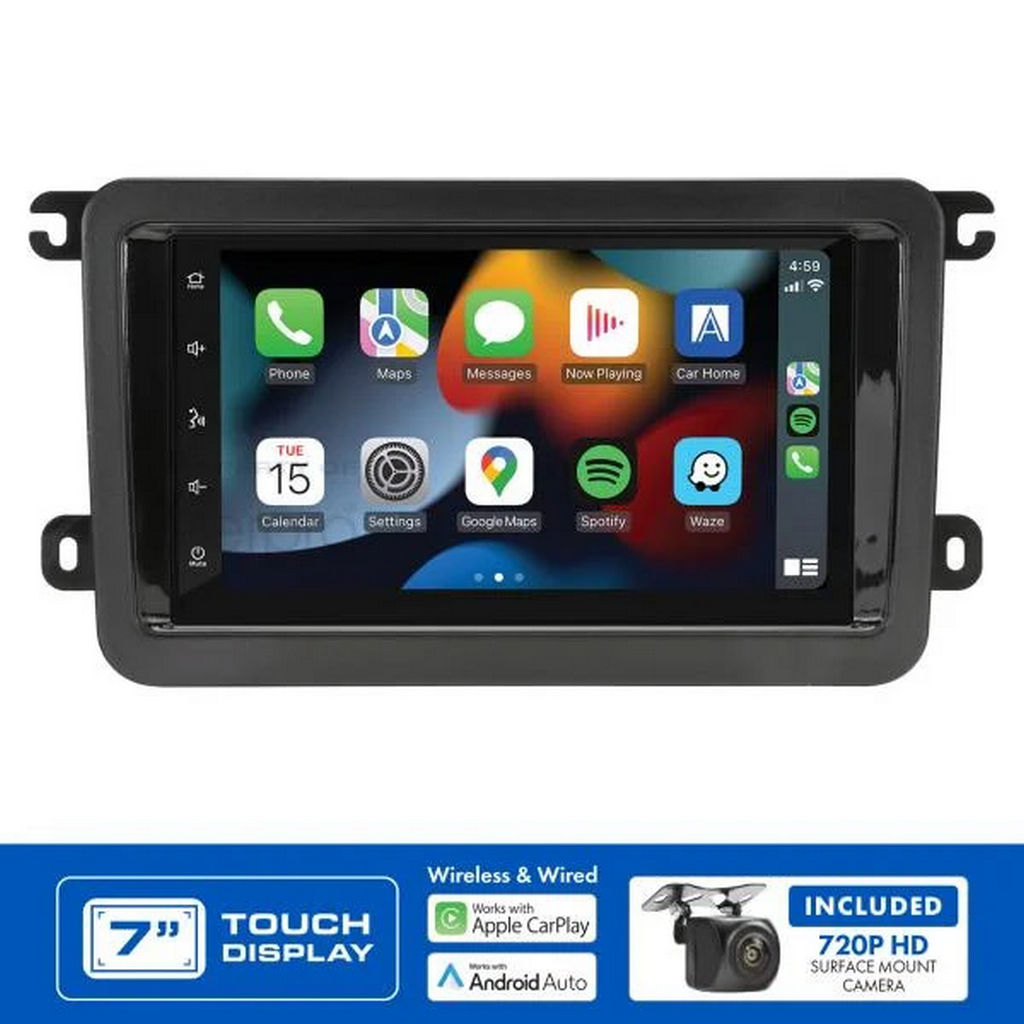

7" MULTIMEDIA RECEIVER TO SUIT VARIOUS VW MODELS

Aerpro AM7X Specifications:
LCD Display:
Size: 7"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 45W
Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Second Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input: Yes
4.2CH Audio Out Cable: Yes
External Microphone: Included

AHD Camera Specifications:
Inclusions:
720P AHD Surface Mount Camera (wired)
6m of Video Cable (RCA) with in-line Reverse Trigger
Mount Type: Surface Mount
Camera Type: Front, Rear Or Reverse
Image Sensor: Sony 225, 1/3 CMOS AHD
Lens Angle 150 Degree
