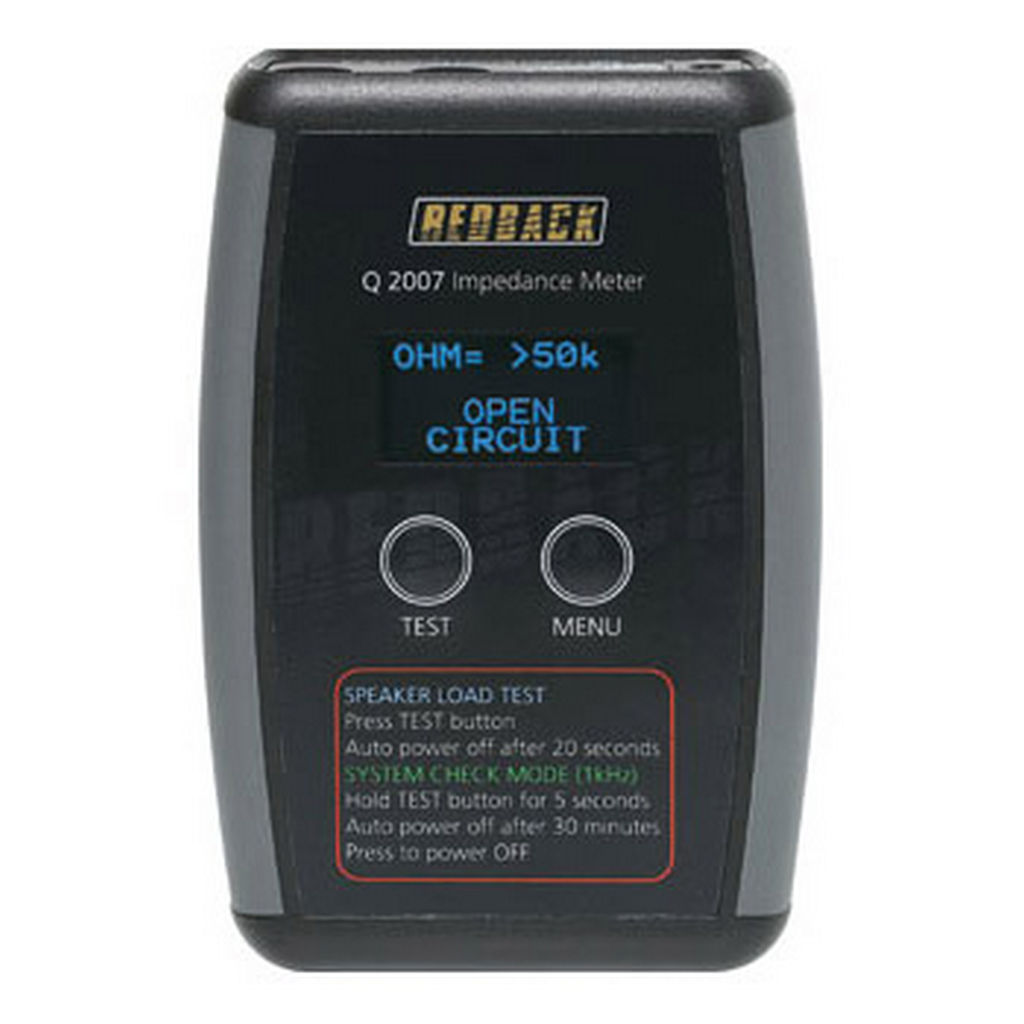

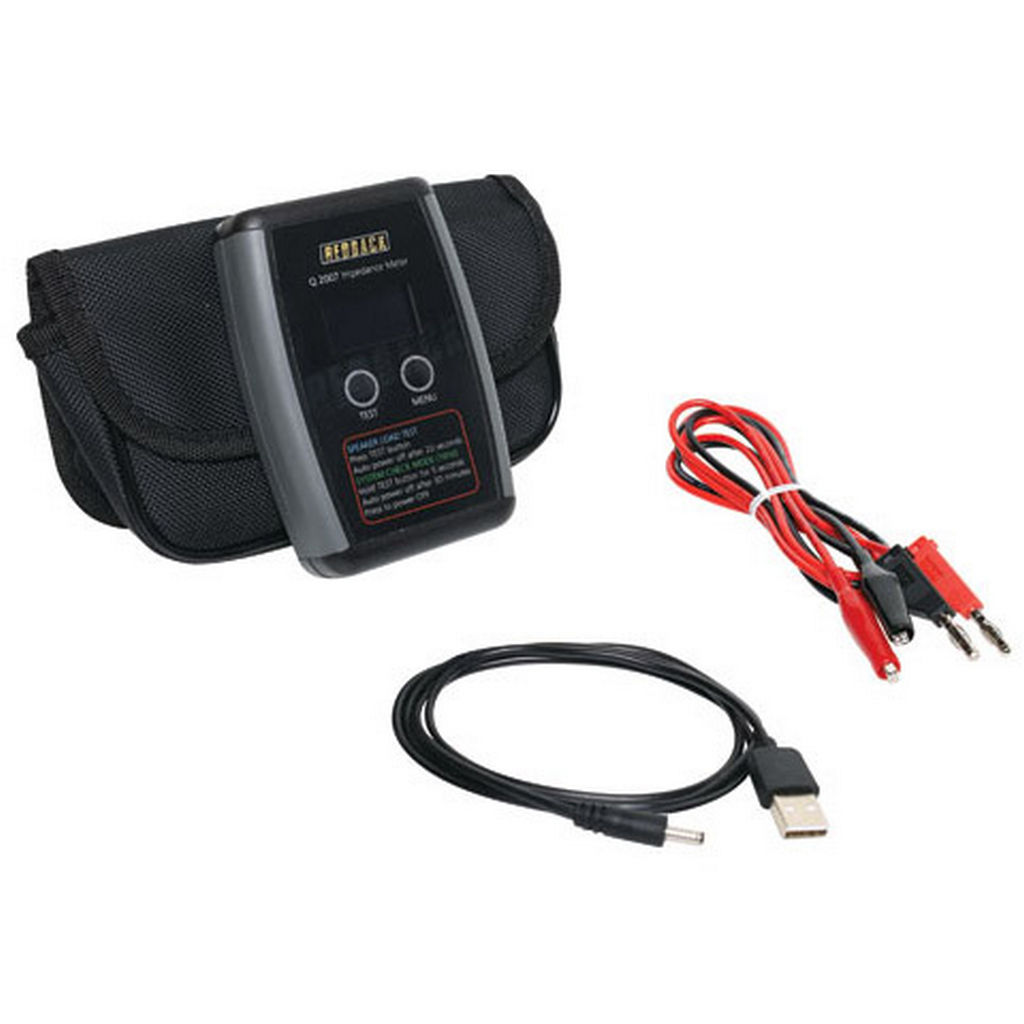

AUDIO IMPEDANCE METER

$369.20

- +

BUY NOW

Order Code: IM2007

Availability: In Stock

PA SYSTEM TESTING

This impedance meter measures low impedance loudspeaker systems and commercial 70V or 100V line speaker systems. It measures loads in watts up to 5kW in power. An inbuilt system check mode produces a 1KHz test tone into the connected speaker line, enabling the operator to check all speakers on the line are working.

The Redback impedance meter is crucial for PA system installers, especially for measuring low impedance loudspeaker systems and commercial 70V or 100V line speaker systems. It measures and calculates loads for both 100V and 70V line systems up to 5k Watts in power, allowing the installer to calculate system wattage. An inbuilt system check mode produces a 1KHz test tone into the connected speaker line, enabling the operator to check all speakers on the line are working.

Suitable for 50V, 70V, and 100V line speaker systems up to 5kW.
Also suitable for measuring low-impedance speaker loads of 4-16Ω.
The OLED display shows the impedance and wattage of the load.
1Ω to 20KΩ test range.
Auto ranging.
Display accurac...

Made in Australia Read / Show More
