6½" CARBON FIBER CONE WOOFER 4 OHM

    $69.50

- +
BUY NOW
  • Order Code: GF180-4
  • Availability: Please Call
    Ships out within 1 - 14 Days

    • DAYTON AUDIO

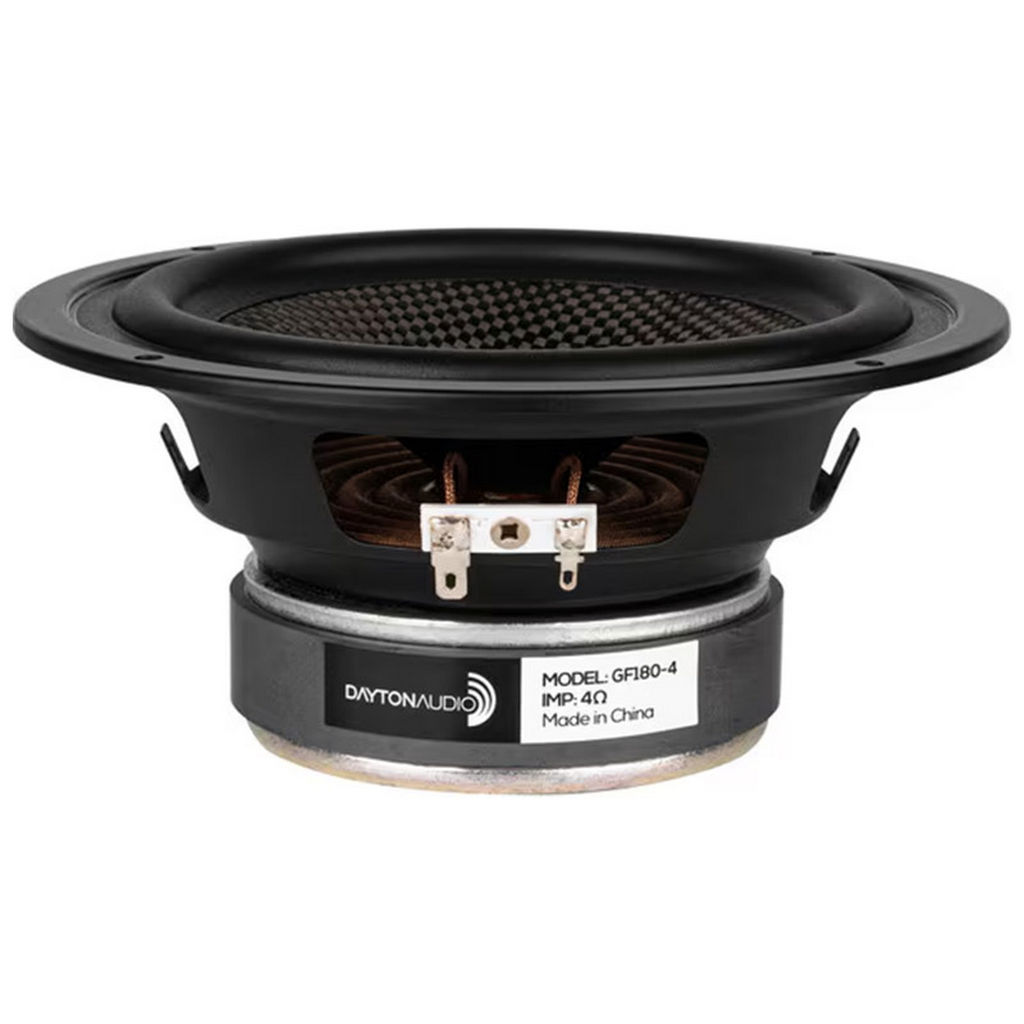

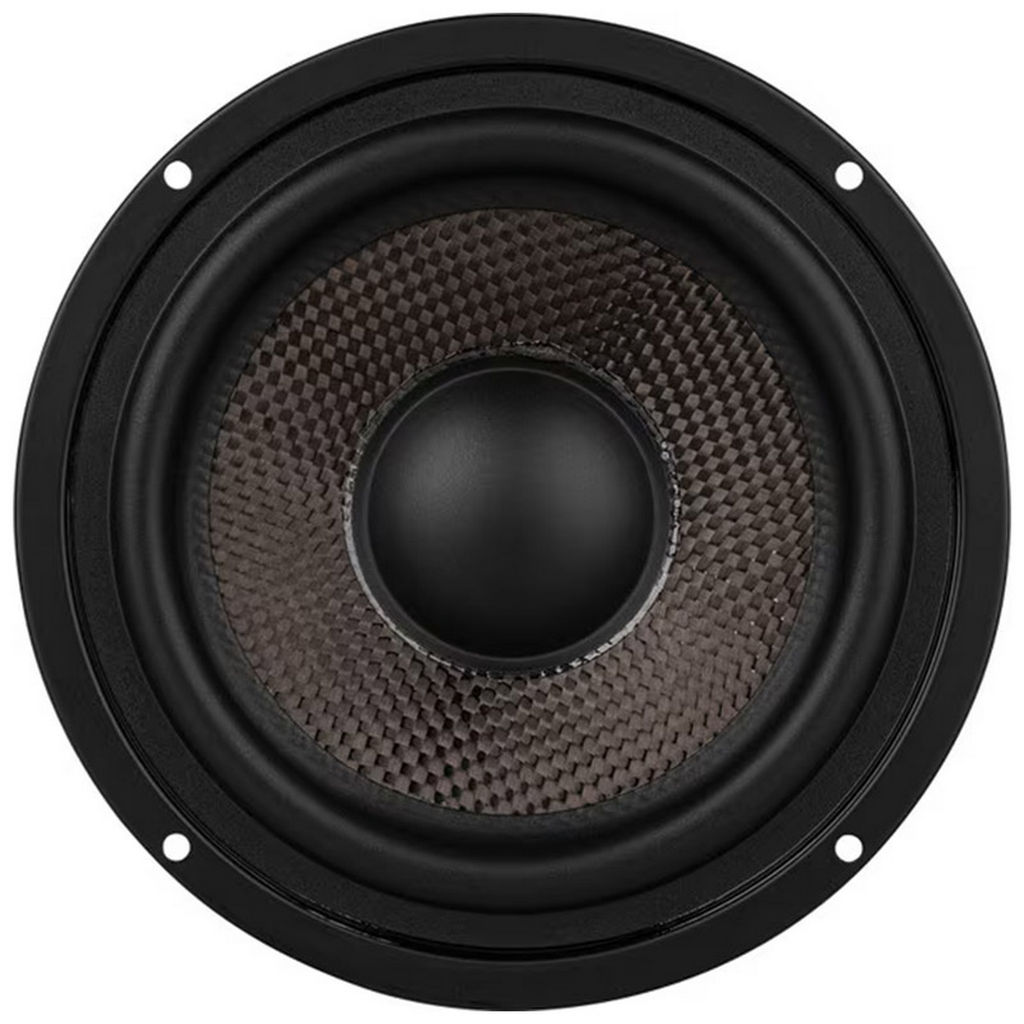

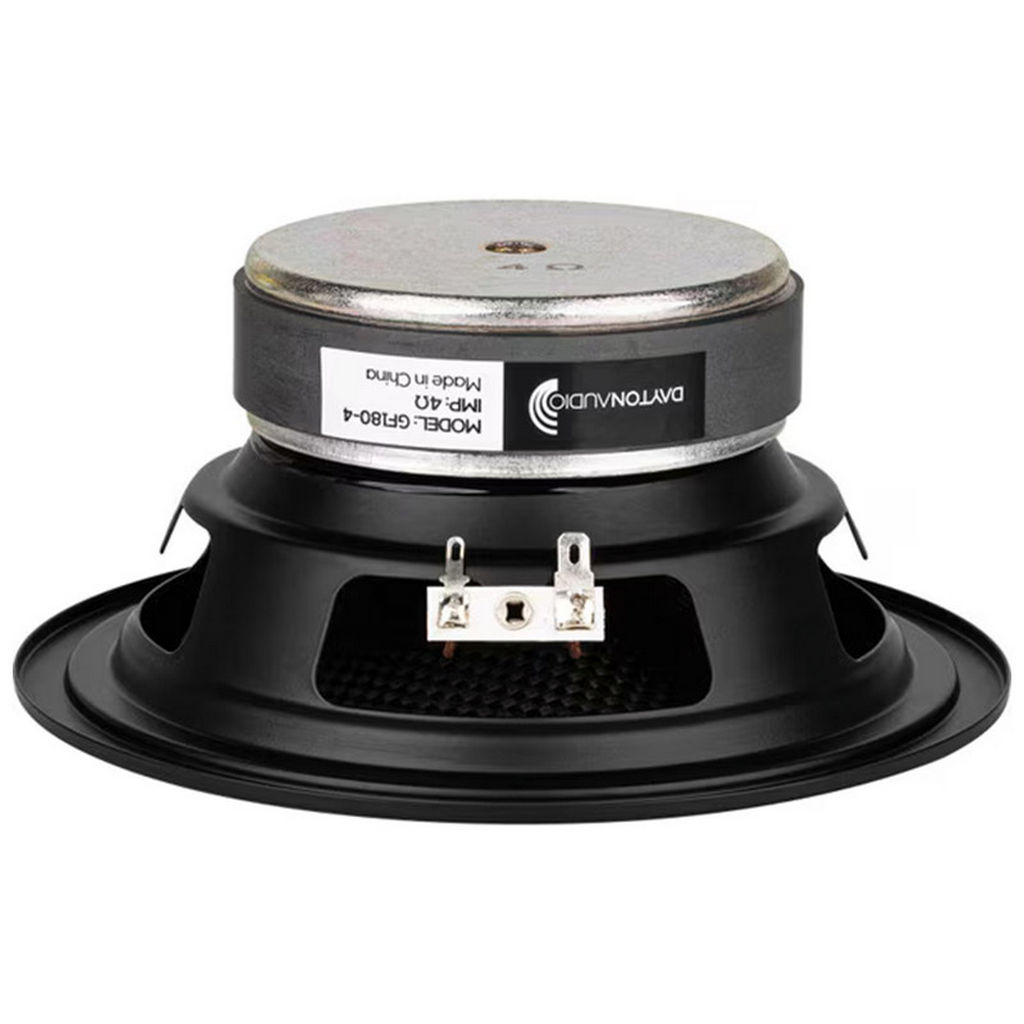

    Dayton Audio’s GF180-4 6-1/2” glass fiber cone woofer is built to produce powerful bass with smooth midrange response. The woven fiberglass cone and rubber surround damps cone resonances allowing an easy transition to tweeters when crossed over at 2,000 Hz. This affordable woofer is a great choice for 2-way bookshelf speaker designs.

  • With a flat response to 4,000 Hz and excellent low-frequency extension, the GF180-4 6-1/2” glass fibre cone woofer from Dayton Audio is ideal for use in low-cost 2-way speaker designs. The naturally damped woven fibreglass cone is driven by a 4-layer voice coil wound on an aluminium former. This driver is a great choice for your next bookshelf speaker, multiple driver tower, or even portable sound systems.

    • Woven fibreglass cone lowers resonances for smooth response and natural sound.
    • A 4-layer voice coil on an aluminium former provides excellent heat dissipation.
    • The rubber surround helps damp the outside edge of the cone, improving high-frequency response.
    • The vented pole piece releases air trapped under the dustcap for quiet ...

    • Read / Show More
    Related Products for 6½

    Related Products : View Product Group Page

    6½

    Found in Category : Speaker Drivers

    Product Specs for 6½" CARBON FIBER CONE WOOFER 4 OHM

    Description 6-1/2" CARBON FIBER CONE WOOFER 4 OHM
    Bl 6.5Tn
    Cms 0.7mm/N
    Coil 25mmØ

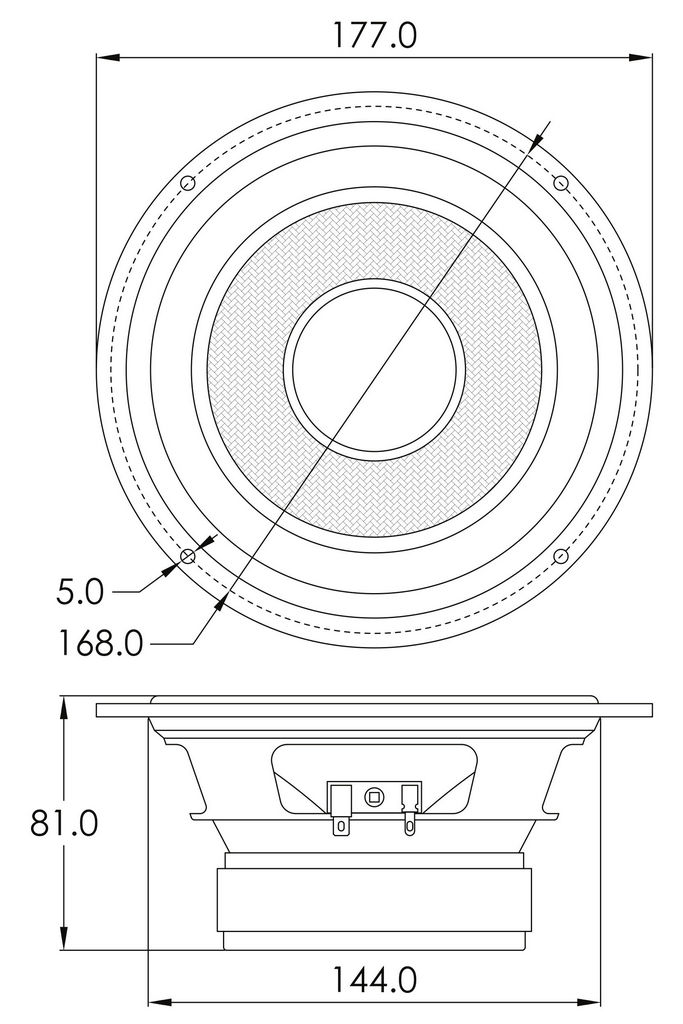

    Depth 81mm
    Diam. 177mmØ
    Freq. 45-5kHz
    Fs 49Hz
    Hole 144mmØ
    Impedance 4Ω Re 4.4Ω
    Impedance (Ohm) 4 ohm
    Inch 6.5
    Le 1.1mH
    Mag. Ferrite
    Manufacturer Dayton Audio
    Material Fibreglass
    Mms 14.8g
    Power 40Wrms
    Power (RMS) 0-50 Watt
    Price Type each
    Prms 40W
    Qes 0.48
    Qms 3.43
    Qts 0.42
    QTY 1
    Re 4.4Ω
    Sd 130.2cm²
    Sens. 90.7dB
    Series Glass Fibre
    Size 6½'
    SPL 90.7dB
    Type Woofer
    Vas 16.5L
    VC 25mmØ
    Vd 52.2cm³
    Xmax 4mm
    Zn 4Ω
    DescriptionFileSize
    Datasheet CF120-4.pdf 296 KB
