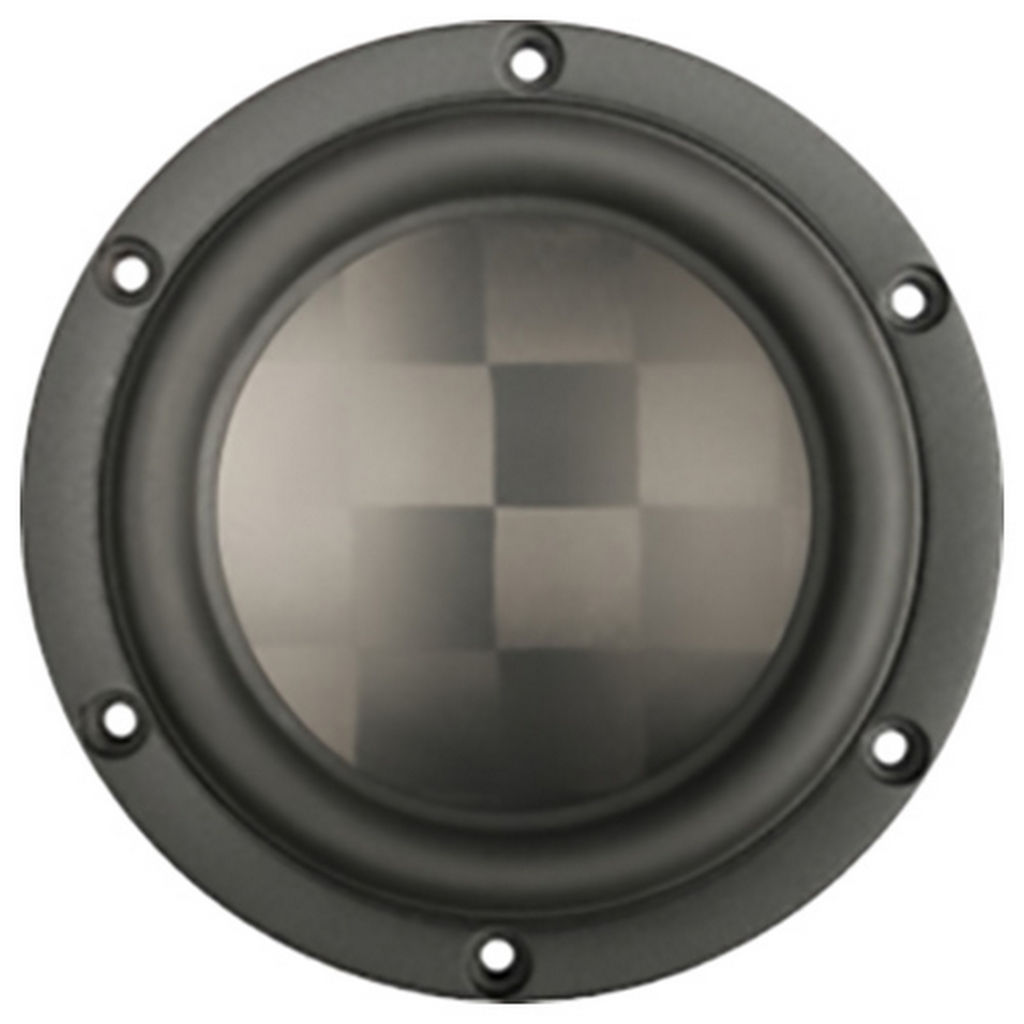

SATORI 5" MID-WOOFER - TEXTREME

Premium 5″ woofer with Neodymium magnet, aerodynamic chassis and woven TeXtreme cone. TeXtreme is an advanced, super thin carbon fibre fabric that maximizes the strength-to-weight ratio. The spread tow technology offers several advantages over regular Spread tow fabrics, such as very low crimp, lower weight and improved cosmetics (cones are very flat and smooth). The laminated thin-ply TeXtreme® material has an excellent stiffness-to-weight ratio (though surpassed by beryllium, it is also significantly less expensive). Available in 4 ohm and 8 ohm models.

Advanced TeXtreme® cone
Vented aerodynamic cast aluminium chassis
Soft low damping rubber surround
Advanced BIMAX spider
Powerful optimized low distortion neodymium

Read / Show More

Found in Category : Speaker Drivers

Filter products by one for more options below:

MW13TX-4 - 5" SATORI DRIVER 4 OHM More Info

Order Code	MW13TX-4
Description	30.5mm Voice coil, Textreme cone, rubber surround, neodymium motor, aluminium chassis
Fs	38Hz
Qes	0.27
Qts	0.26
Qms	5.08
Vas	16L
Power	40Wrms
Sens2	89dB
Impedance	4Ω Re 3.8Ω

More Info

Order Code : MW13TX-4

Availability: Please Call

- +

$439.00

MW13TX-8 - 5" SATORI DRIVER 8 OHM More Info

Order Code	MW13TX-8
Description	30.5mm Voice coil, Textreme cone, rubber surround, neodymium motor, aluminium chassis
Fs	40Hz
Qes	0.34
Qts	0.32
Qms	4.99
Vas	14.8L
Power	40Wrms
Sens2	87dB
Impedance	8Ω Re 6.0Ω

More Info

Order Code : MW13TX-8

Availability: Out of stock. Back Order Item

ETA: PLEASE CALL

- +

$439.00

MW13TX-4 - 5" SATORI DRIVER 4 OHM

$439.00

Order Code: MW13TX-4

Availability : Please Call

Product Details

Add To Cart

Order Code	MW13TX-4
Description	30.5mm Voice coil, Textreme cone, rubber surround, neodymium motor, aluminium chassis
Fs	38Hz
Qes	0.27
Qts	0.26
Qms	5.08
Vas	16L
Power	40Wrms
Sens2	89dB
Impedance	4Ω Re 3.8Ω

MW13TX-8 - 5" SATORI DRIVER 8 OHM

$439.00

Order Code: MW13TX-8

Availability : Out of stock. Back Order Item

ETA: PLEASE CALL

Product Details

Add To Cart

Order Code	MW13TX-8
Description	30.5mm Voice coil, Textreme cone, rubber surround, neodymium motor, aluminium chassis
Fs	40Hz
Qes	0.34
Qts	0.32
Qms	4.99
Vas	14.8L
Power	40Wrms
Sens2	87dB
Impedance	8Ω Re 6.0Ω
