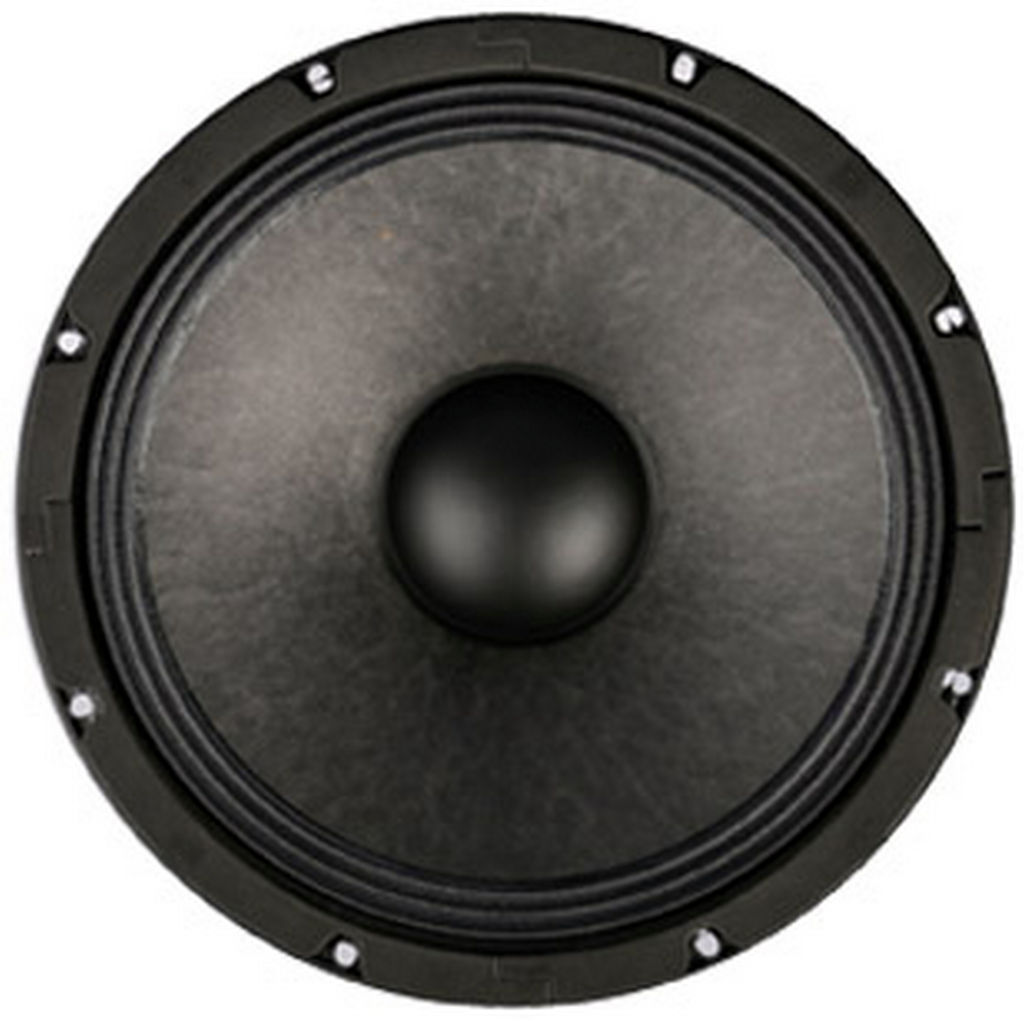

SB AUDIENCE NERO 12" MID-WOOFER

    $369.00

- +
BUY NOW
  • Order Code: NERO-12MWN400D
  • Availability: In Stock



    • Proprietary cone paper material with manila pulp
    • Cast aluminium chassis & Strong neodymium motor
    • 3" voice coil with APC (Advanced Polymer Coating)
    • Copper sleeve for low inductance and reduced distortion
    • Interleaved Sandwich Voice coil technology
    • Minimum damping fibre glass voice coil former

    • 1. AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air 2. Maximum power is defined as 3dB greater than nominal power.
    Related Products for SB AUDIENCE NERO 12

    Related Products : View Product Group Page

    SB AUDIENCE NERO 12

    Found in Category : Speaker Drivers

    Product Specs for SB AUDIENCE NERO 12" MID-WOOFER

    Description 12" - Midwoofer - 400W - 96dB
    Cms 0.07mm/N
    Coil 75mm
    Depth 133mm
    Fs 66Hz
    Impedance 8Ω Re 5.3Ω
    Impedance (Ohm) 8 ohm
    Inch 12'
    Le 0.19mH
    Manufacturer SB Audience
    Materials Till
    Mms 78.8g
    Power 400W AES
    Power (RMS) 200+ Watt
    Price Type each
    Prms 400W
    Qes 0.55
    Qms 8.98
    Qts 0.52
    QTY 1
    Re 5.4Ω
    Rms 3.63kg/s
    Sd 543.3cm²
    Sens. 96dB
    Series SB Pro-mid woofers
    Size 12'
    Type Mid-Woofer
    Vas 31.1L
    Width 323mmØ
    Zn 8Ω
    Freq. 66-6000Hz
    Pmax 800W
    Page 39
    eBook

    Link to eBook
    Hole 287mmØ
    Dimensions 145x323mmØ
    Hole Cutout 287mmØ
    Note. Data is correct to stock at time of printing, however SBA are constantly improving their stock and data may change without notice. For the latest datasheets, please see www.sbaudience.com
