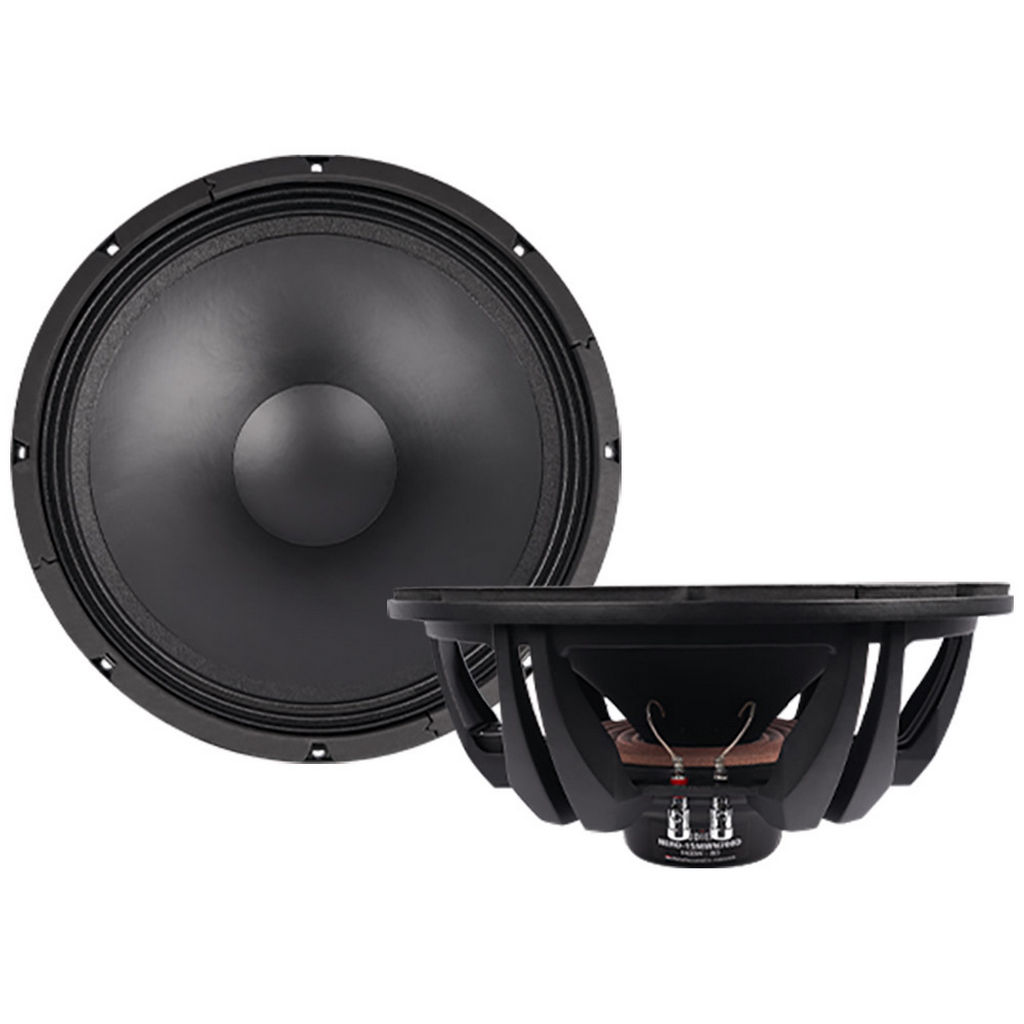

SB AUDIENCE NERO 15" MID-WOOFER

    $459.00

- +
BUY NOW
  • Order Code: NERO-15MWN700D
  • Availability: In Stock

  • Proprietary cone paper material with manila pulp.
    Strong neodymium motor.
    3" voice coil with APC (Advanced Polymer Coating).
    Interleaved Sandwich Voice Coil technology.
    Cast aluminium chassis.
    Minimum damping fibre glass voice coil former.
    Copper sleeve for low inductance and reduced distortion.
    Vented motor for reduced compression.

    • 1. AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air. 2. Maximum power is defined as 3dB greater than nominal power. 3. Xmax= ((Winding depth - magnetic gap depth)/2) +(magnetic gap depth/3) 4. Maximum excursion (p-p) before permanent damage 5. T/S parameters measured on drive units that are broken in using Klippel LPM Measurement System.
    Related Products for SB AUDIENCE NERO 15

    Related Products : View Product Group Page

    SB AUDIENCE NERO 15

    Found in Category : Speaker Drivers

    Product Specs for SB AUDIENCE NERO 15" MID-WOOFER

    Description 15" - Midwoofer - 1400W - 97dB
    Cms 0.14mm/N
    Coil 76mm
    Depth 164mm

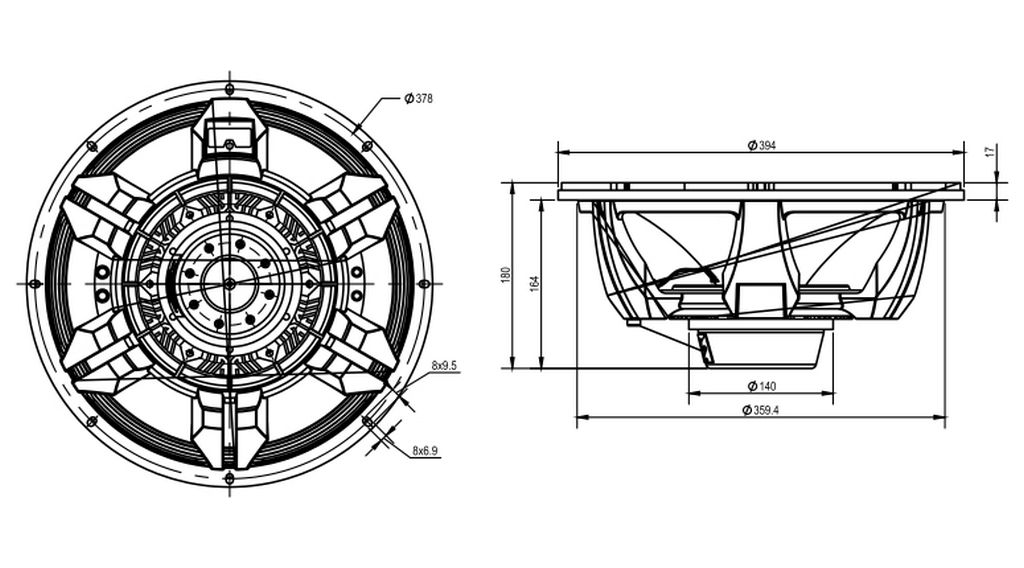

    Dimensions 180x394mmØ
    Freq. 41-5800Hz
    Fs 41.4Hz
    Hole 394mmØ
    Hole Cutout 361mmØ
    Impedance 8Ω Re 5.3Ω
    Impedance (Ohm) 8 ohm
    Inch 15'
    Le 0.37mH
    Manufacturer SB Audience
    Materials Till
    Mms 107.6g
    Pmax 1400W
    Power 700W AES
    Power (RMS) 200+ Watt
    Price Type each
    Prms 700W
    Qes 0.48
    Qms 9.07
    Qts 0.46
    QTY 1
    Re 5.3Ω
    Rms 3.1kg/s
    Sd 865.7cm²
    Sens. 97dB
    Series SB Pro-mid woofers
    Size 15'
    Type Mid-Woofer
    Vas 145.9L
    Width 394mmØ
    Zn 8Ω
    Note. Data is correct to stock at time of printing, however SBA are constantly improving their stock and data may change without notice. For the latest datasheets, please see www.sbaudience.com
    DescriptionFileSize
    Datasheet NERO-15MWN700D.pdf 916 KB
    SB Audienc SB-Audience-Catalogue.pdf 8697 KB

    Please contact us with your download requirements,e.g. User Manual, Data Sheet, etc and will get back to you.
