SINGLE-PHASE DC CONTROL DC SOLID STATE RELAY 100A
SINGLE-PHASE DC CONTROL DC SOLID STATE RELAY 100A
SINGLE-PHASE DC CONTROL DC SOLID STATE RELAY 100A
SINGLE-PHASE DC CONTROL DC SOLID STATE RELAY 100A

SINGLE-PHASE DC CONTROL DC SOLID STATE RELAY 100A

    $55.00

- +
BUY NOW
  • Order Code: GRS2-1-100DD
  • Availability: In Stock

    • DIN MOUNTABLE WITH BUILT-IN HEATSINK

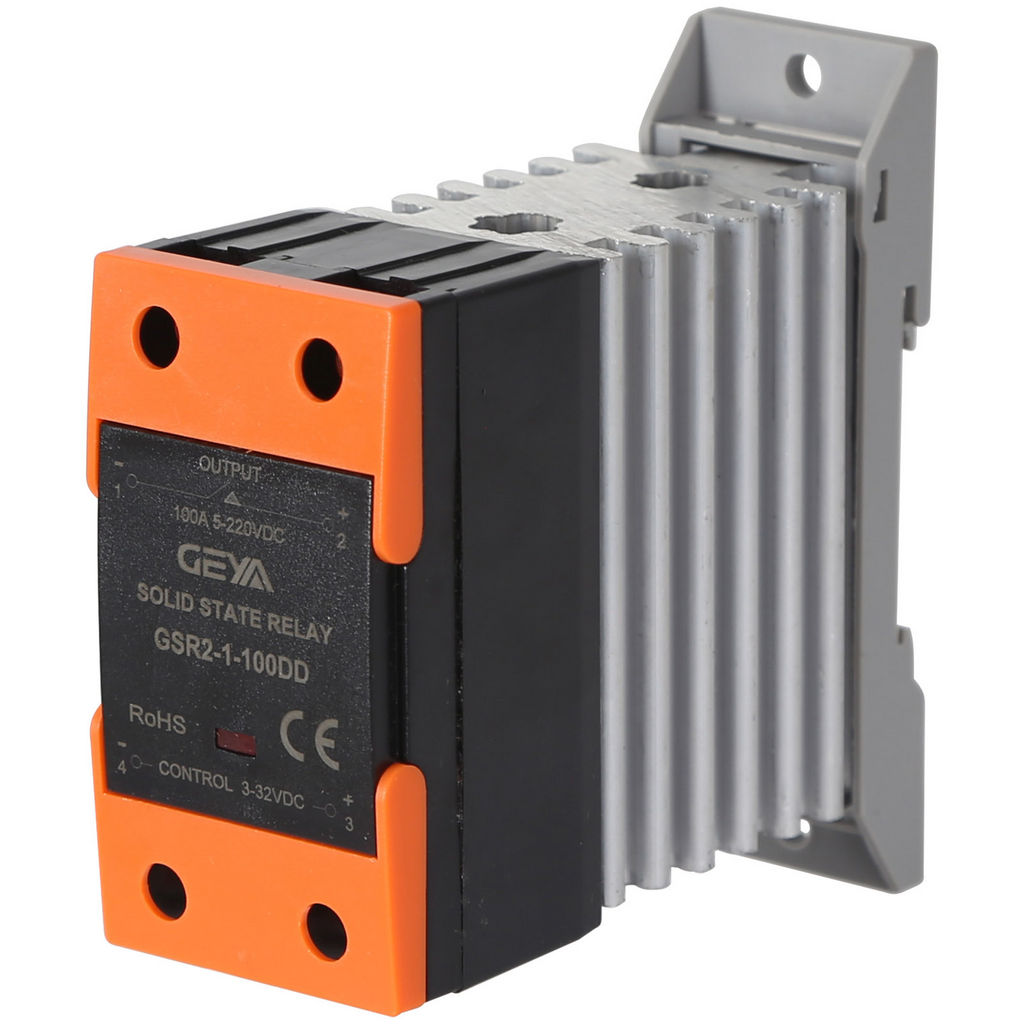

  • Single-Phase DC Solid State Relay (SSR) 100A max load current.
    The SSR includes built-in DIN mountable heat sink.

    • Wide output and small control current, less than 25mA.
    • No mechanical operation parts.
    • Fast switching <10ms, can switch on with 0 voltage and switch off with 0 current in some applications.
    • Low radio frequency interference.
    • Photoelectric isolation between input and output circuits.
    • Can withstand voltage of 2500V.
    • LED indicator.
    • Compact design filled with epoxy resin.

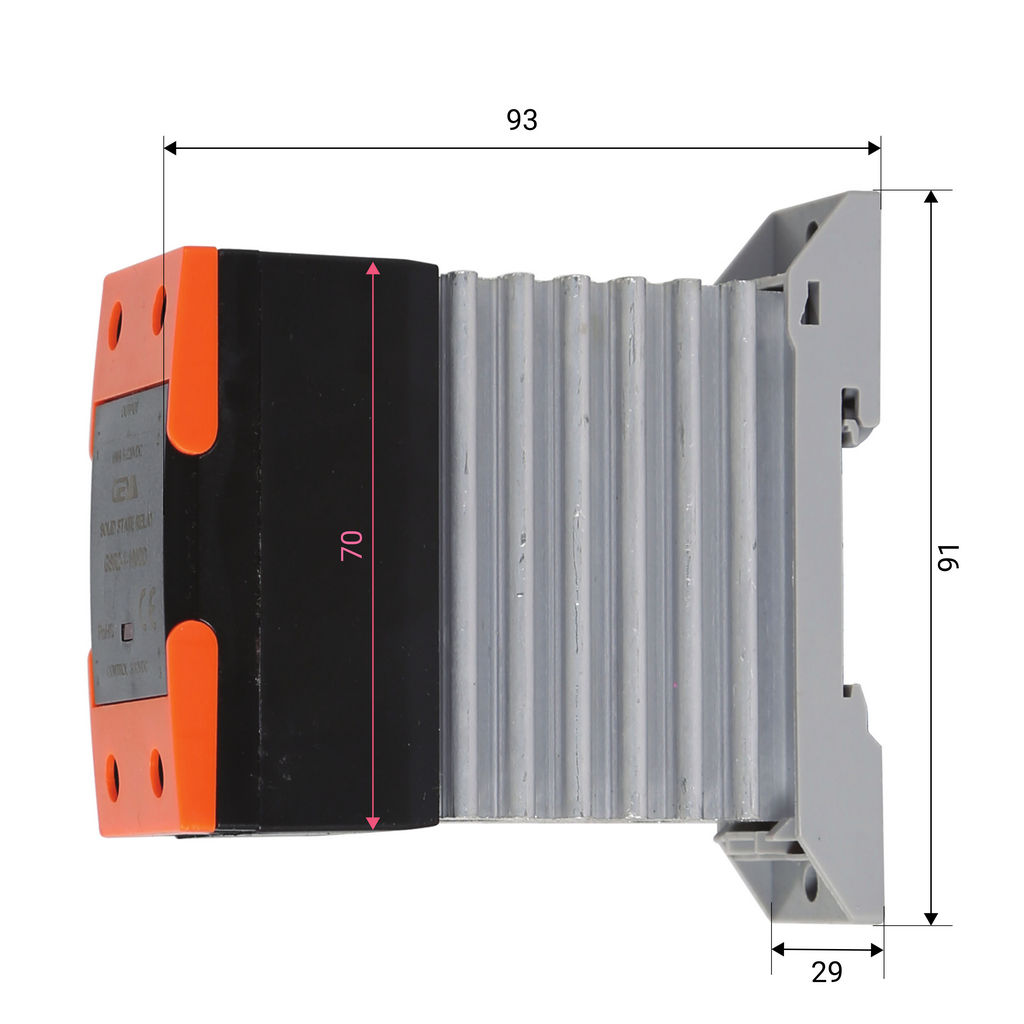

    • Size: 38x91x93mm (with heatsink) or 39x70x39mm (without heatsink).

    • Related Products for SINGLE-PHASE DC CONTROL DC SOLID STATE RELAY 100A

    Related Products : View Product Group Page

    SINGLE-PHASE DC CONTROL DC SOLID STATE RELAY 100A

    Found in Category : Semiconductors

    Product Specs for SINGLE-PHASE DC CONTROL DC SOLID STATE RELAY 100A

    Description GSR2-1-100DD SSR Relay
    Amax 100Arms
    Current 100Arms
    Input 3-32V DC
    Size 38x91x72mm
    Voltage 5-220V DC
    Coil 3-32Vdc 25mA
    Iout 100Arms DC
    Output 5-220V DC
    V out 220Vrms DC
    Vmax 220Vrms
    Type SPST
    DescriptionFileSize
    Datasheet GRS2-1-100DD.pdf 1893 KB
