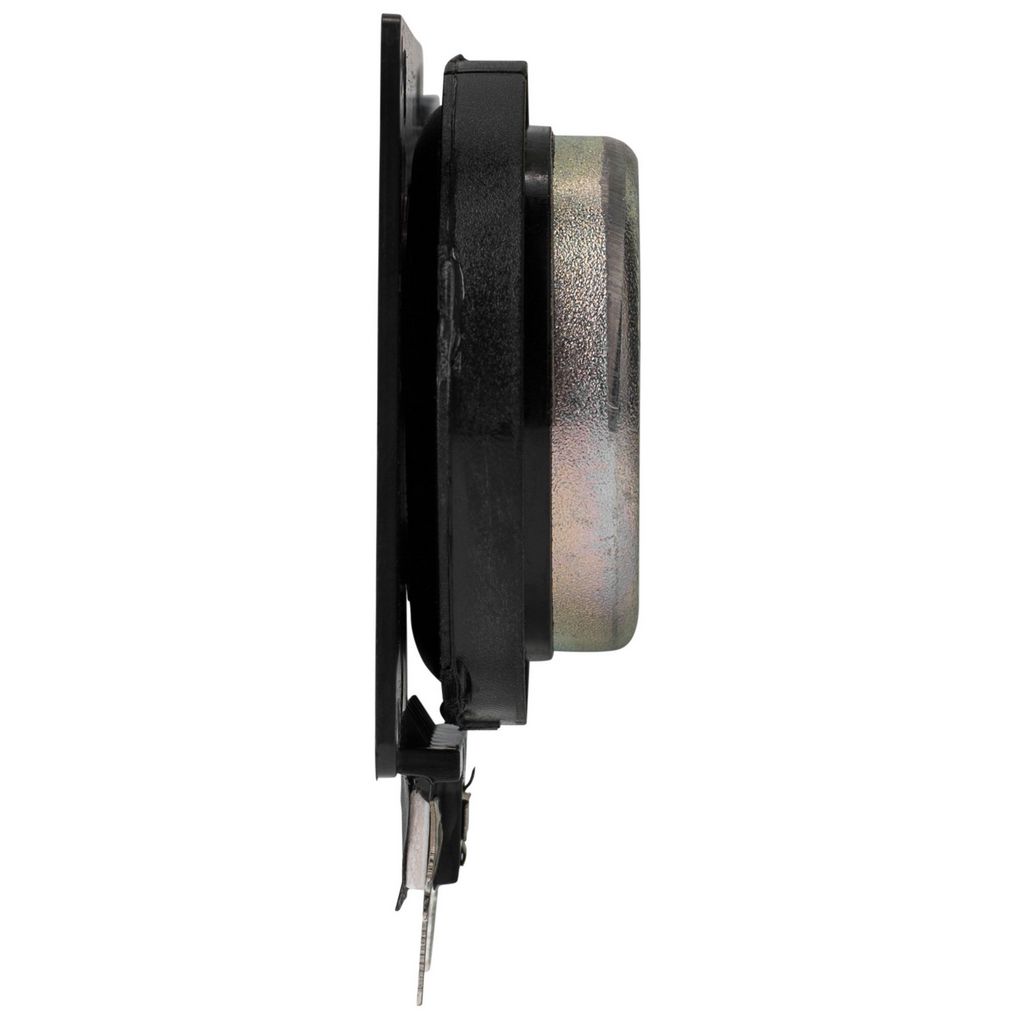

SOUND EXCITER 25W 58MM SQUARE

$39.50

- +

BUY NOW

Order Code: DAEX58FP

Availability: In Stock

58MM² FLAT PACK WITH SCREW HOLES

Ideal for commercial or residential sound applications, the Dayton Audio DAEX58FP Flat Pack exciter easily mounts to most any surface using adhesives (3M tape or gel glue recommended) or screw mounted. A 2-1/4" square plate can be attached to virtually any flat surface to produce amazing sound, creating a speaker from most any surface area.

Flat Pack exciter is the perfect choice to turn virtually any solid object into a speaker by vibrating it at speeds of up to 20,000 cycles per second. The DAEX58FP allows for the placement of sound where depth and space is limited. 58x58mm

Ideal for commercial or residential sound applications, the Dayton Audio DAEX58FP Flat Pack exciter easily mounts to most any surface using adhesives (3M tape or gel glue recommended) or screw mounted. A 2-1/4" square plate can be attached to virtually any flat surface to produce amazing sound, creating a speaker from most any surface area. Surface materials include: cardboard, glass, wood, steel, sheet rock, and more. The 58 mm exciter is heavily used in the automotive, industrial, point-of-sale, retail display, marine, aeronautical industry, d...

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Read / Show More

Related Products for SOUND EXCITER 25W 58MM SQUARE

Related Products : View Product Group Page

Found in Category : Speaker Drivers

Product Specs for SOUND EXCITER 25W 58MM SQUARE

Description	Flat Pack 58mm Exciter 25W 8 Ohm
Type	Exciter
Size	2"
Price Type	each
Power	25Wrms
Freq.	60Hz - 12KHz
Height	20mm
Coil	32mmØ
Width	58mm²
Impedance	8Ω (Re 7.0Ω)
Depth	20mm
Re	7.0Ω
Qts	1.98
Cms	.05mm/N
Fs	240Hz
Mms	9.95g
Le	0.47mH
Manufacturer	Dayton Audio
Impedance (Ohm)	8 ohm
Power (RMS)	0-50 Watt
Diam.	58mm²
Dimensions	20x58mm²
Wagner eBook	03-134
QTY	1
Prms	25W
Zn	8Ω
Series	Tactile

Description	File	Size
Datasheet	DAEX58FP.pdf	249 KB
Introduction to exciters	exciter_white_page.pdf	361 KB
