SASANDU-TX TEXTREME OPEN SOURCE KIT SB ACOUSTICS

OPEN SOURCE INFORMATION - NOT AVAILABLE AS A KIT

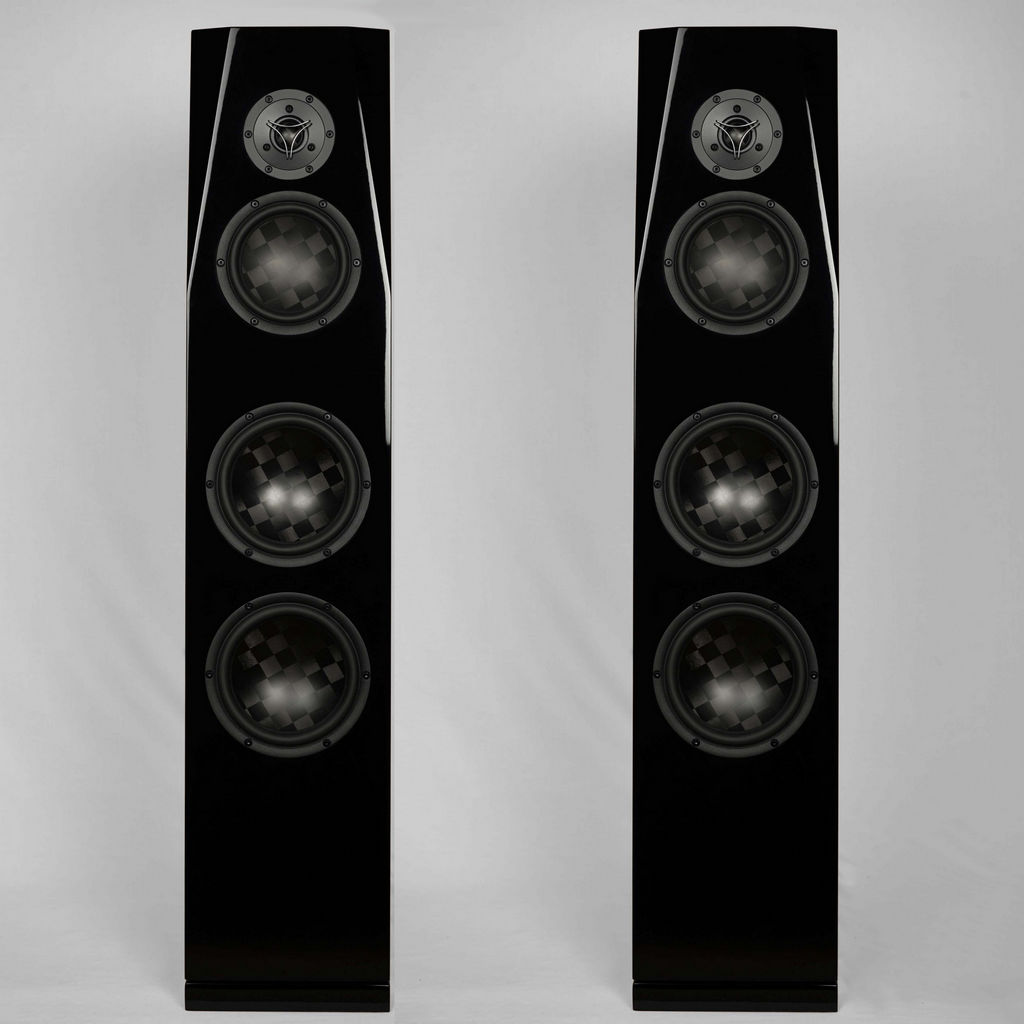

The SASANDU TX is a large 3-way floor standing speaker showcasing the SATORI TW29TXN-B-8 advanced TeXtreme® dome tweeter known for it’s extreme resolution and dynamics yet relaxed presentation. The midrange is covered by the 6½” SATORI MW16TX-4 TeXtreme® cone midwoofer housed in a dedicated large sealed midrange chamber for low compression and wonderful open midrange. Each speaker is solidly anchored in the lower octaves by two 7½” SATORI MW19TX-8 for a deep, tight and satisfyingly musical bass.

  • Large 3-way floor standing speaker
  • Advanced TeXtreme High End SATORI drivers
  • Elegantly inclined cabinet for time alignment
  • Faceted baffle and optimized tweeter position for reduced diffraction
  • Slanted internal partition for reduced

  • Large 3-way floor standing speaker
  • Advanced TeXtreme High End SATORI drivers
  • Elegantly inclined cabinet for time alignment
  • Faceted baffle and optimized tweeter position for reduced diffraction
  • Slanted internal partition for reduced of standing waves
  • Stylish removable plinth for secure footing
  • Strategic internal bracing and dampening
  • Large low noise rear firing vent


Frequency Range: 32 – 32000 Hz
Sensitivity ( 2.83V / 1m ): 89 dB
Nominal Impedance: 4Ω
Max SPL: 108 dB
Recommended Amplifier: 100 – 200 W
Crossover Frequency: 400/ 2800 Hz
Enclosure Type: Bass reflex (woofer), sealed (midrange)
Port tuning Frequency: 32 Hz
Drive Units SATORI TW29TXN-B-8, 6.5 inch SATORI MW16TX-4 & 7.5 inch SATORI MW19TX-8

Read / Show More

Found in Category : Loudspeakers - Kits

Related Products
SASANDU-TX DRIVERS TEXTREME

SASANDU-TX DRIVERS TEXTREME

TW29TXN-B-8 - TEXTREME DOME

$395.00

Order Code: TW29TXN-B-8
Availability : In Stock
Order Code TW29TXN-B-8

MW16TX-4 - 6.5" SATORI TEXTREME

$399.00

Order Code: MW16TX-4
Availability : In Stock
Order Code MW16TX-4

MW19TX-8 - 7.5" SATORI DRIVER 8 OHMS

$469.00

Order Code: MW19TX-8
Availability : In Stock
Order Code MW19TX-8
SASANDU-TX CABINETS

SASANDU-TX CABINETS

SASANDU-WHSAT - WHITE SATIN CAB. PAIR SUIT SASANDU

$2,089.00

Order Code: SASANDU-WHSAT
Availability : Please Call
Order Code SASANDU-WHSAT

SASANDU-BKSAT - BLACK SATIN CABINETS + GRILED PAIR SANSANDU

$2,089.00

Order Code: SASANDU-BKSAT
Availability : Please Call
Order Code SASANDU-BKSAT

SASANDU-WHGL - WHITE HIGH GLOSS CABINETS PAIR

$2,559.00

Order Code: SASANDU-WHGL
Availability : Out of stock. Back Order Item
Order Code SASANDU-WHGL

SASANDU-BKHGL - BLACK HIGH GLOSS CABINETS+GRILLE PAIR

$2,559.00

Order Code: SASANDU-BKHGL
Availability : Please Call
Order Code SASANDU-BKHGL

Contact us for Bulk Buy and Project Based Pricing for SASANDU-TX TEXTREME OPEN SOURCE KIT SB ACOUSTICS



DescriptionFileSize
SASANDU-TX-Crossover-Schematic.pdf 185 KB
Sasandu-Cabinet-Drawings.pdf 721 KB
TW29TXN-B-8 - Product Downloads

Description File Size
Datasheet TW29TXN-B-8.pdf 562 KB
SB Acoustics Catalogue SB-Acoustics-Catalogue.pdf 26130 KB
SASANDU-WHSAT - Product Downloads

Description File Size
Sasandu-Manual Sasandu-Manual.pdf 3164 KB
MW16TX-4 - Product Downloads

Description File Size
Datasheet MW16TX-4.pdf 605 KB
SB Acoustics Catalogue SB-Acoustics-Catalogue.pdf 26130 KB
SASANDU-BKSAT - Product Downloads

Description File Size
Sasandu-Manual Sasandu-Manual.pdf 3164 KB
MW19TX-8 - Product Downloads

Description File Size
Datasheet MW19TX-8.pdf 643 KB
SB Acoustics Catalogue SB-Acoustics-Catalogue.pdf 26130 KB
Linkwitz Transform XLS can be adjusted for any driver Satori_MW19TX-4_Linkwitz-Transform.xls 136 KB
SASANDU-WHGL - Product Downloads

Description File Size
Sasandu-Manual Sasandu-Manual.pdf 3164 KB
SASANDU-BKHGL - Product Downloads

Description File Size
Sasandu-Manual Sasandu-Manual.pdf 3164 KB

Please contact us with your download requirements,e.g. User Manual, Data Sheet, etc and will get back to you.
