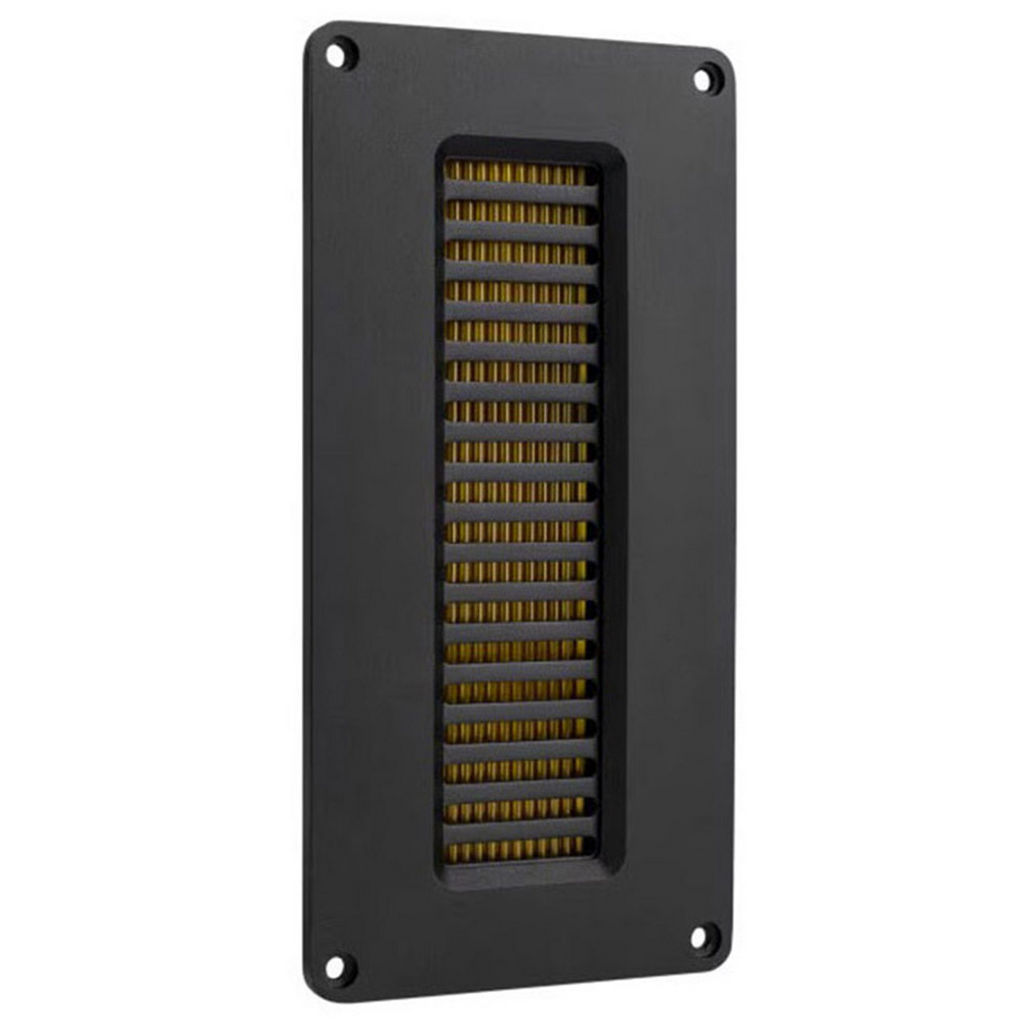

AIR MOTION TRANSFORMER TWEETER 200x100MM - DAYTON AUDIO

AIR MOTION TRANSFORMER TWEETER 200x100MM - DAYTON AUDIO

$265.00

- +

BUY NOW

Order Code: AMTPRO-4

Availability: In Stock

WITH LARGE AMT-TECHNOLOGY DIAPHRAGM AND HIGH-STRENGTH NEODYMIUM MOTOR

Dayton Audio AMTPRO-4 Air Motion Transformer is designed for professional audio and demanding high-fidelity applications in which high SPL demands combine with the need for detailed reproduction and musical finesse.

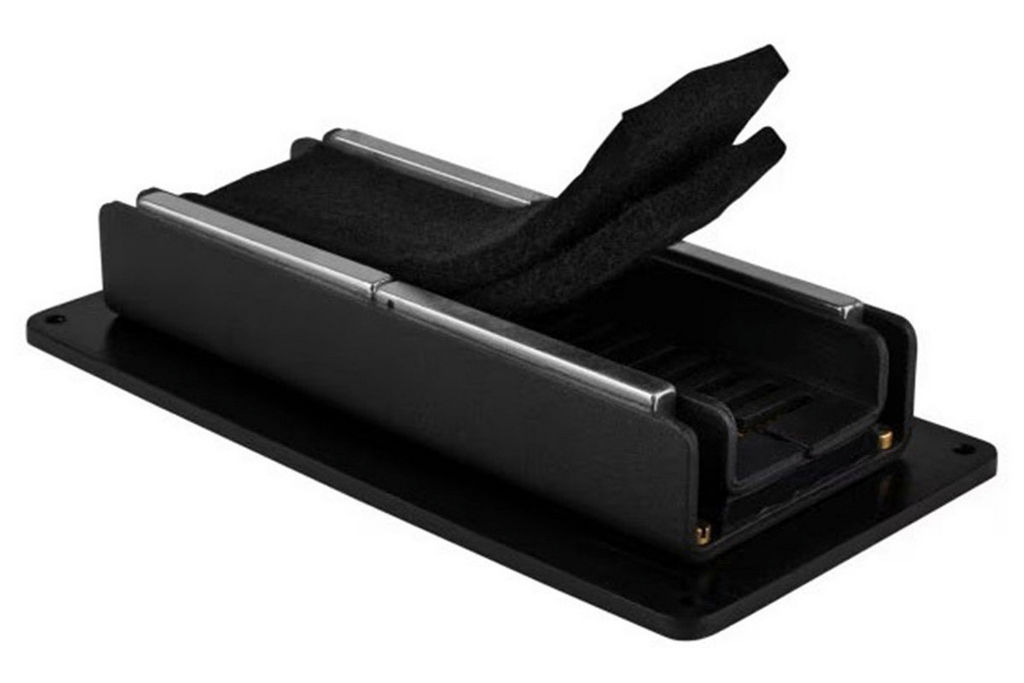

Dayton Audio's AMTPRO-4 model features an extremely large AMT diaphragm with an open-back design and powerful neodymium magnetic assembly. This combination produces high output and low distortion over a broad frequency range while handling large amounts of amplifier power.
Perfect for use in PA loudspeakers, large-format studio monitors, custom cinema speakers, or extreme performance hi-fi loudspeakers, the AMTPRO-4 can easily be chamber-loaded or open-baffle-loaded as required by a particular dipole application. Thanks to its ability to be crossed over as low as 800 Hz, the AMTPRO-4 driver is a uniquely effective solution for midrange reproduction as well as treble and can even be used as a wide-bandwidth "mid-tweeter" driver.

Folded Kapton ribbon...

Read / Show More

Related Products for AIR MOTION TRANSFORMER TWEETER 200x100MM - DAYTON AUDIO

Related Products : View Product Group Page

Found in Category : Speaker Drivers

Product Specs for AIR MOTION TRANSFORMER TWEETER 200x100MM - DAYTON AUDIO

Description	AIR MOTION TRANSFORMER TWEETER
Cms	N/A
Coil	AMT
Depth	60mm
Diam.	200x100mm
Fs	N/A
Hole	172x72mm
Impedance	4Ω Re 3.96Ω
Impedance (Ohm)	4 ohm
Manufacturer	Dayton Audio
Mms	N/A
Power	50W
Power (RMS)	0-50 Watt
Price Type	each
Prms	50W
Qes	N/A
Qms	N/A
Qts	4.12
QTY	1
Re	3.96Ω
Sd	54.72cm²
Sens.	94dB
Series	AMT
Type	Tweeter
Vas	N/A
Zn	4Ω

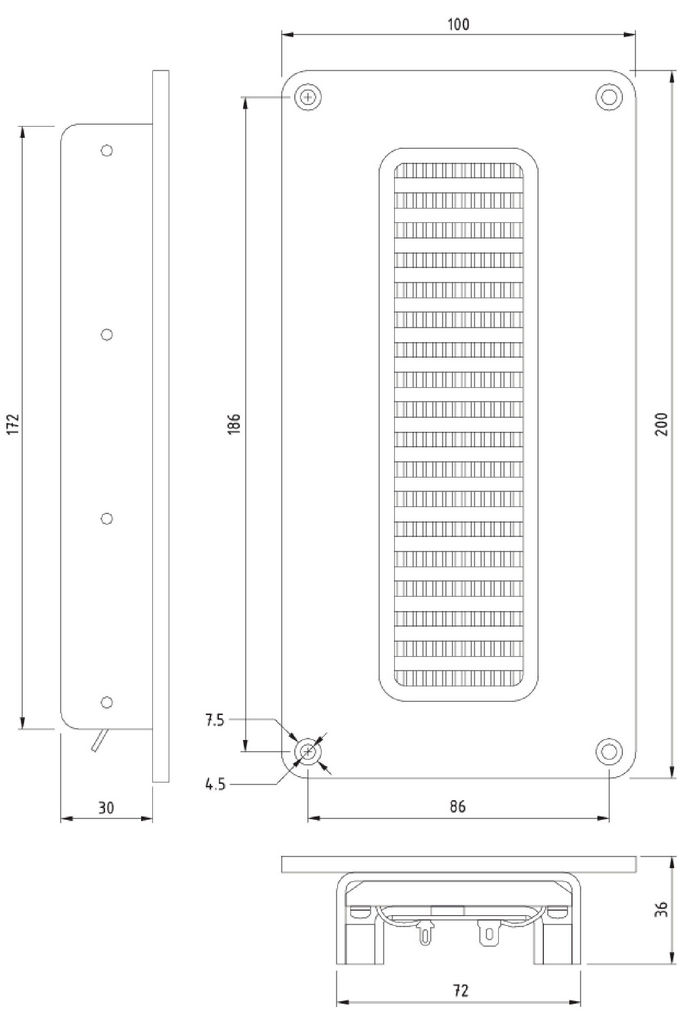

Dimensions	200x100x36mm

Description	File	Size
Datasheet	AMTPRO-4.pdf	114 KB
