AIR MOTION TRANSFORMER TWEETER AUTOMOTIVE - PAIR

AIR MOTION TRANSFORMER TWEETER AUTOMOTIVE - PAIR

$139.00

- +

BUY NOW

Order Code: AMTPOD-4

Availability: In Stock

Dayton Audio's AMTPOD-4 makes it easy to add clear, detailed, natural-sounding highs to any car audio system. Air Motion Transformer technology enables these tiny component tweeters to achieve high output levels while sounding effortless, with better detail than most dome tweeters. Suggested crossover point >4KHz.

The Dayton Audio AMTPOD-4 is a high-technology Air Motion Transformer tweeter encased in a compact angled "pod" enclosure for easy mounting in your car. Try them on your dashboard and experience a wide, expansive soundstage with open and extended highs and incredible detail!
The angled housings can be positioned anywhere on your dash or A-pillar, then adhered using the included mounting tape. Simply connect the included lead wires to an appropriate high-pass crossover (4500 Hz or above at 12 db per octave), and you are ready to begin enjoying audiophile-quality treble performance. The AMTPOD-4 tweeters are sold as a pair.

Air Motion Technology, for detailed, non-fatiguing treble.
Extended, open, dynamic high-frequency performance.

Note: Note: The AMTPOD-4 does not include an internal crossover capacitor; this allows you to choose the quality of the capacitor to use. We recommend a 6.8 uF non-polar capacitor in series with the positive connection of the AMTPOD-4 to provide an effective crossover point near 7,800 Hz with a 6 dB per octave slope. Using this tweeter without a high-pass filter capacitor is not recommended and may result in damage. Read / Show More

Related Products for AIR MOTION TRANSFORMER TWEETER AUTOMOTIVE - PAIR

Related Products : View Product Group Page

Found in Category : Speaker Drivers

Product Specs for AIR MOTION TRANSFORMER TWEETER AUTOMOTIVE - PAIR

Description	AIR MOTION TRANSFORMER TWEETER
Cms	N/A
Coil	AMT

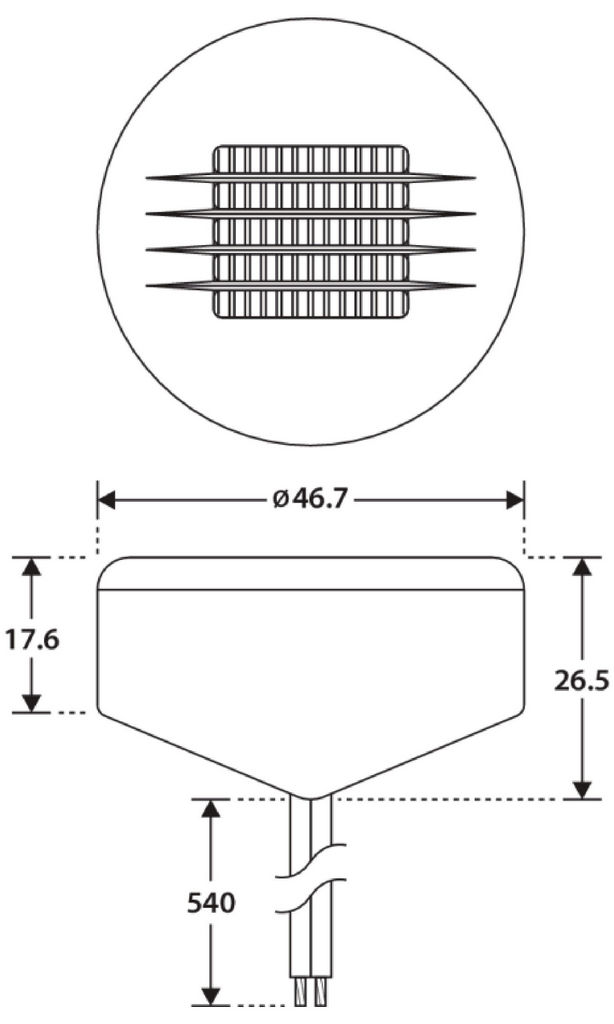

Depth	26.5mm
Diam.	46.7mmØ
Impedance	4Ω Re 2.9Ω
Impedance (Ohm)	4 ohm
Inch	1.5
Manufacturer	Dayton Audio
Mms	N/A
Power	15W
Power (RMS)	0-50 Watt
Price Type	pair
Prms	15W
Qes	N/A
Qms	2.09
Qts	2.06
QTY	2
Re	2.9Ω
Sd	N/A
Sens.	90dB
Series	AMT
Size	1.5'
Type	Tweeter
Vas	N/A
Zn	4Ω

Description	File	Size
Datasheet	AMTPOD-4.pdf	226 KB
