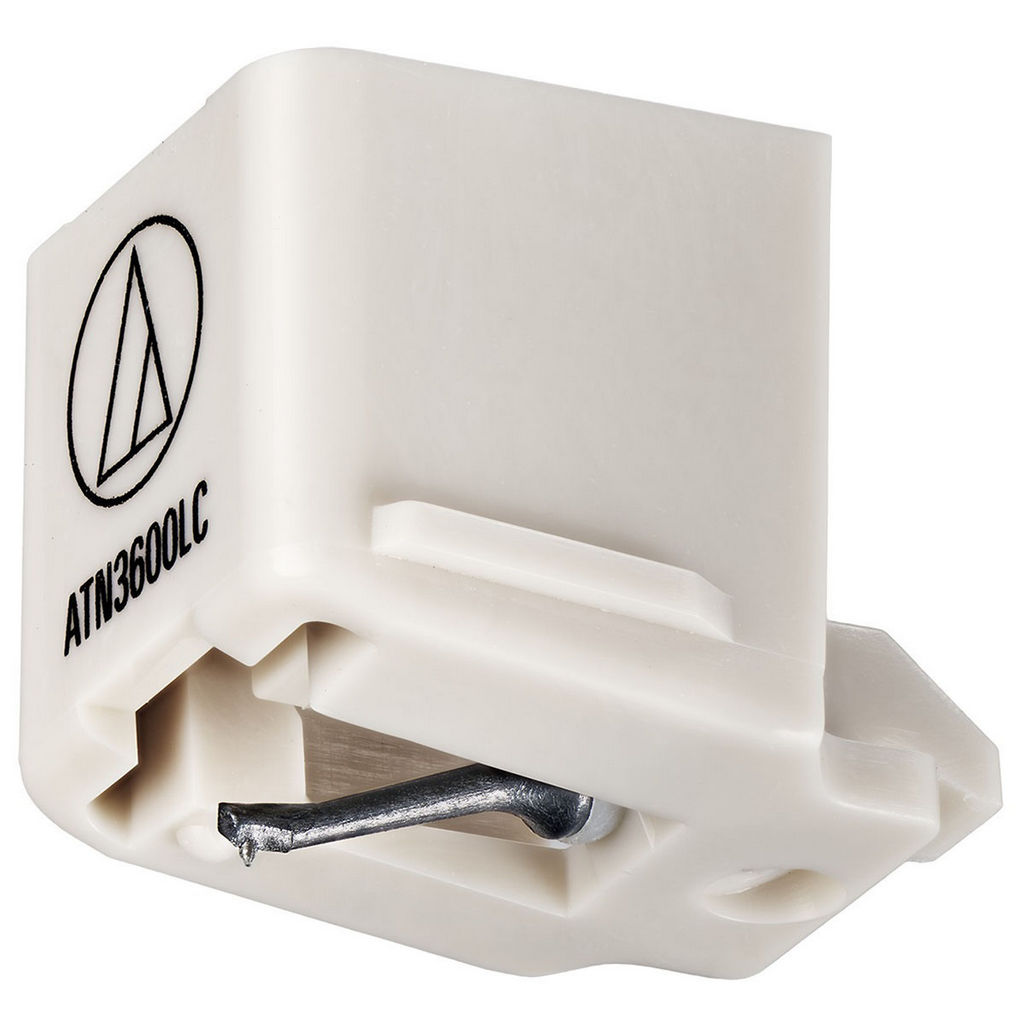

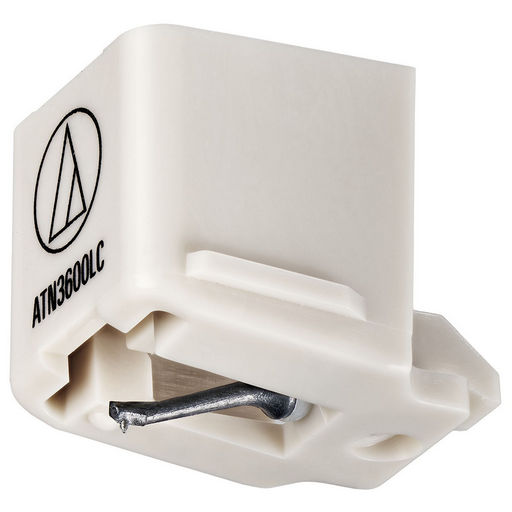

ATN3600L REPLACEMENT STYLUS

AT3600L use ATN3600L

Dual-magnet replacement stylus to replace the popular ATN3600L.

To remove old stylus (needle), hold the cartridge in one hand, grasp the plastic stylus housing with thumb and forefinger, and pull away from the cartridge. The stylus assembly comes away at a slight angle, as indicated by the arrow.
To install replacement stylus, insert the new stylus assembly into the cartridge at a slight angle, so the hook at the end of the stylus fits into the slot in the cartridge body. The stylus assembly should click into place when fully seated on the cartridge. The stylus must be fully seated on the body for proper operation.

Although these stylii will fit all the cartridges/turntables/systems listed, some stylus are intended for turntables whi
Dual-magnet replacement stylus to replace the popular ATN3600L.

To remove old stylus (needle), hold the cartridge in one hand, grasp the plastic stylus housing with thumb and forefinger, and pull away from the cartridge. The stylus assembly comes away at a slight angle, as indicated by the arrow.
To install replacement stylus, insert the new stylus assembly into the cartridge at a slight angle, so the hook at the end of the stylus fits into the slot in the cartridge body. The stylus assembly should click into place when fully seated on the cartridge. The stylus must be fully seated on the body for proper operation.
- Although these stylii will fit all the cartridges/turntables/systems listed, some stylus are intended for turntables which have tonearms that are NOT adjustable like the Audio Technica LP60 or Sony LX300.

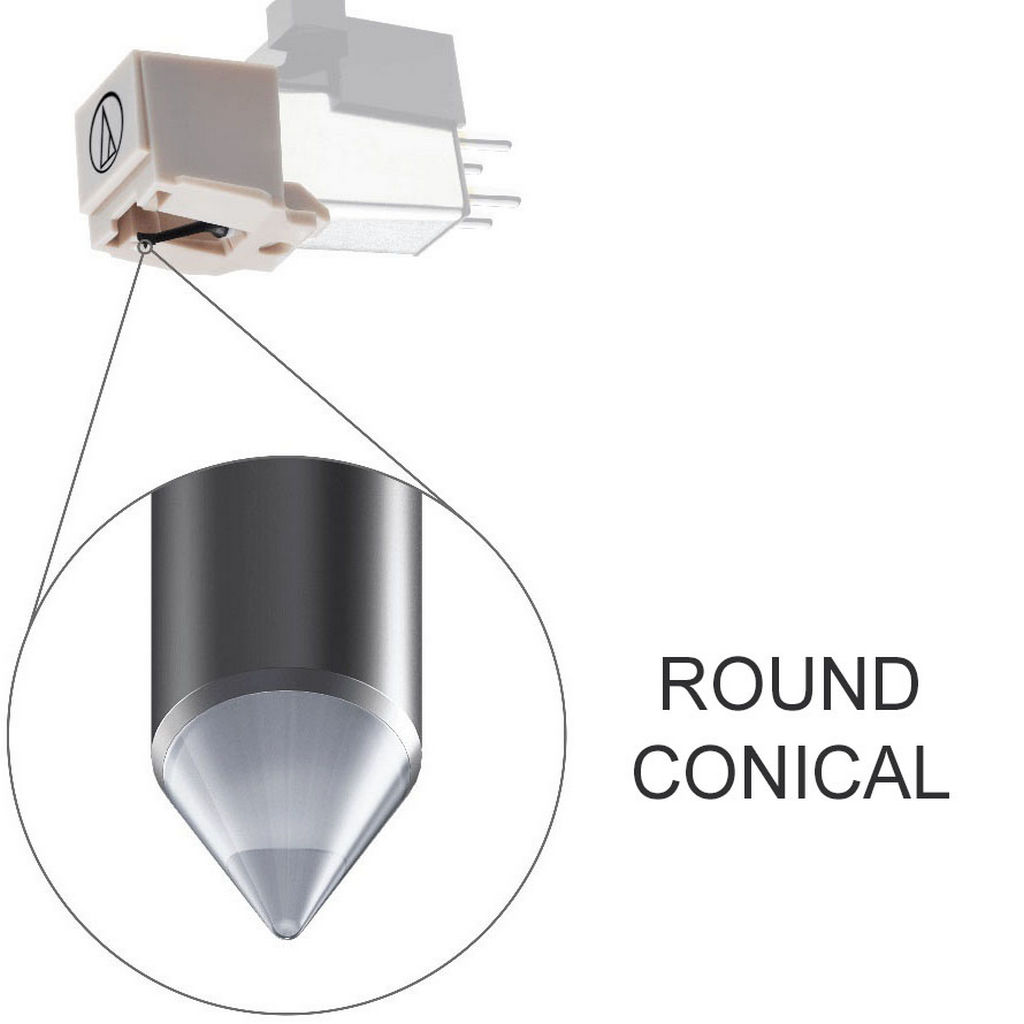

- Non-adgustable = Use the preset 3g tracking force stylus D1155G or ATN3600L (Round tip) is designed for best operation on novice turntables preset with no adjustments for tracking force or azimuth
- Adjustable = Use the above 3g or the D1155 with a tracking force of 2g. The cross-reference listed turntables, provided they have adjustable tracking force, are generally best suited to the 2g version.
Aiwa : AN11
Audio Technica : ATN3600L, ATN3600LAX, ATN3650L, ATN3650, ATN 3601, ATN3600 , ATN91, ATN90
Akai : RS82
Dual : DN239, DN251, DN251S, DN251E
Columbia-Denon : DSN72, DSN84, DSN82
Hitachi : DSST7
Kenwood Trio : N74
JVC Nivico : DT58, DT55
National-Panasonic-Technics : EPS43STSD,
Onkyo : DN61ST, DN63STE
Sansui : SN111
Pioneer : PN210, PN240, PN230
Philips : D780
Sony : ND142G, ND155G
Sharp : STY163, STY138, STY140, STY141
Sanyo : STW8J, STL5D
Yamaha : N7700, N7900
Toshiba : N16D
Novatech : HT506, HT530, HT531
NEC : MC570, MC571
Morse : TS725
Marantz : CT42
Goldstar : ATN91
AWA : ATN3601
Voxon : VH5, VH10
Trakton : TRD195
TEAC: JC75, P190, P505
Silver : SL500, SL550
Sherwood : PD608, PD913, PD701, PD702
Samsung : VIP680
PYE : ATN91
Brands/Cartridges using this stylus:
Aiwa: E770, PXE451, PXE45, PXE55, PXE75, PXE77, PXE88, PXE333, PXE550, PXE750, PXE770, PXE850, PXE855, V770, X33, X55, X78
Audio Technica: AT90, AT91, AT94E, AT2001, AT2002, AT2003, AT2004, AT2005, AT2006, AT3600, AT360LAX, AT3650, AT3601, AT3651, AT3651, AT3652E
Pioneer: PC210, PC230, PC240
Philips: GP780
Sony: VL42G
Brands/Turntables or Systems using this stylus:
Akai : APB1, APM350, APM370, APM600, PXE900
Audio Technica : AT-LP60, AT-LP60-USB
Cord : DJ-U Pro
Crosley : CR6010A, C100, C200, CR6232, CR6233, CR6234, CR6249A, CR6250A, Collegiate, Nomad, Bermuda, Dansette Jnr, Keepsake, Keepsake Delux
Denon : DP200, DP29F
Dual : CS90, CS100, CS120, CS123, CS138, CS415, CS455, CS435-1, CS505-2, CS505-4, CS511, CS514, CS520, CS525, CS610Q
Hitachi : HT26, HT28, HT44L, HT55L, MD16, MD26, MD28, SDT44L, SDT55L, SDT60, SMD50
Kenwood Trio : KD38, KD39R, KD291R, KD4020, KD5010, P26, RXD25L
JVC : ALE1, ALE2, ALE33, DC33, GX120, GX222, GX240, JLA200, KLA200, KLE300, LA10, LA100, LA110, LAX3, LAX 11B, LFX4, LFX5, LFX210, W1, W2, W3, W5CD, W300, W400, QLA200, QLF300, QLF320, QLFX5, W33, W34
National Panasonic Technics : P440, Phoenix, SG152, SG235, SGD35, SGV05, SGV06
Onkyo : CP1007, CP1022, CP1026A, CP1033, CP1046F, CP1057F, Disco1000, Licence 22, Licence 25, Licence 85, Licence 1000, PX55R
Optimus : Lab-1100 Lab1100
Sansui : P1000
Pioneer : Avanti 7200, PA1, PA3, PA5, MSZ7, PDZ71, PE66A, PL202, PL210, PL222Z, PL223, PL230, PL310, PL333Z, PL335, PL340, PL466, PL530, PL540, PL550, PL555Z, PL990, PL2200, PLJ2500, PLS30, PLZ71, PLZ81, PLZ82, PLZ85, PLZ91, PLZ92, PLZ93, PLZ94, PZP1004, S1, S2, S3
Philips : 3in1, EAK1023M, EAK2006, F880, F883, S1628, S1728, S4100, S4200, TTXC1, XC2, XC3, XC2115, XC3006
Sony : Comp19, Comp25, Comp26, Comp28, Comp40, Comp48, Comp49, Comp58, Comp69, Comp74, Comp75, Comp76, Comp87, Comp100, Comp110, Comp510, Comp610, Comp710. EXD550W, LBTV701, PS150, PS155, PS200, PS311, PS320, PSD705, PSLX33, PSLX35, PSLX50, PSLX40, PSLX43P, PSLX45, PSLX47P, PSLX50, PSLX52Y, PSLX60, PSLX62, PSLX66, PSLX70, PSLX100, PSLX155, PSLX200, PSLX220, PSLX231, PSLX235, PSLX250, PSLX285, PSLX295, PSLX300, PSLX300USB, PSLX311, PSLX310, PSLX320, PSLX340, PSLX431, PSLX700, PSV701, PSV702, PSV901, System 28, XOD1, XOD5, XOD8, XOD201, XOD301, XOD501, XOD550, Z2000, Z3000, Z5000, PSLX250H,
Sharp : 1620, CP1600, CP1900, GX88, N15, RP111, RP302, RP307, RP320, SC6900, SGF650, System111, System160, System304, System320, System650, System 2526
Sanyo : DCXW8, DCXW17, DCXW18, G1400, G3230, G5230, GXT260, System220, System330, TP220, TP1400, TPC20, W8, W17, W18, W27
Yamaha : P05, P06, P07, P17, P25, P27, P700, P720, P1520, PF30, TT17, TT25, TT250, TT300, TT320, TT330, TT400, TT520, TT700, PF20, TT500
Toshiba : SRV9, SRV12
Novatech : 668, HT506, HT530, HT531, MAG530, MAG725, MD200, MD500XT, N5100V
NEC : MC570, MC571
Morse : TS725
Marantz : TT42, TT5005
Goldstar : GCD82P, GCM-CD1, GSA5300, GSA5420, GSP208
AWA : S601, S802
Voxon : D0170A, DJ0170A, TT1010, VH5, VH10
Trakton : TRD195
TEAC : CG7700, CSP208, CSP308, CSP3500, JC75, N595, N707, P190, P305, P440, P707, P708, P988, PS708, PS900, SS700, SS800
Silver : SL500, SL550
Sherwood : IM2893CD, SS1004, SS1020, PD411, PD608, PD701, PD702, PD724, PD728, PD801, PD913, PD7018, PD7028, ST870, ST101, ST1018, ST1028, ST1620, Dek7U
PYE : JH302, MC8125, MC8133, MC8331, MC8533, MC8700, MD7, P4, P4505, P4507, P4509, PL4, PL12, TT1M
DJTech : Vinyl USB 10
