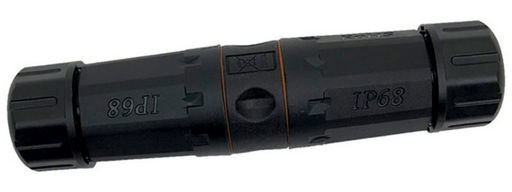

CAT6A WATERPROOF RJ45 INLINE COUPLER

Cat6A RJ45 inline coupler joins two premade patch leads together.
Easy to assemble.
IP68 waterproof rating.
Suits Cable OD: 5-7.5mm.

Voltage rating: 125VAC RMS
Current rating: 1.5Amp
Contact resistance: 100 milliohms Max
Insulation resistance: 1000 Megohms Min @500VDC
Dielectric strength: 750 VAC RMS 60Hz, 1 Min
Storage: -40°C to 85°C
Operation: 0°C to 70°C
Housing material: PA66
Insert material: Flame Retardancy PBT
PCB material: FR-4 T=1.6mm
RJ45 jack contact: Phosphor bronze with nickel plating gold plated 50U
RJ45 jack life: 750 times minimum
Waterproof grade: IP68
Cable OD: 5-7.5mm
