HILLS ACTIVE RF SPLITTER 6 WAY

TO SUIT HILLS HUB

Original Hills HAS-206

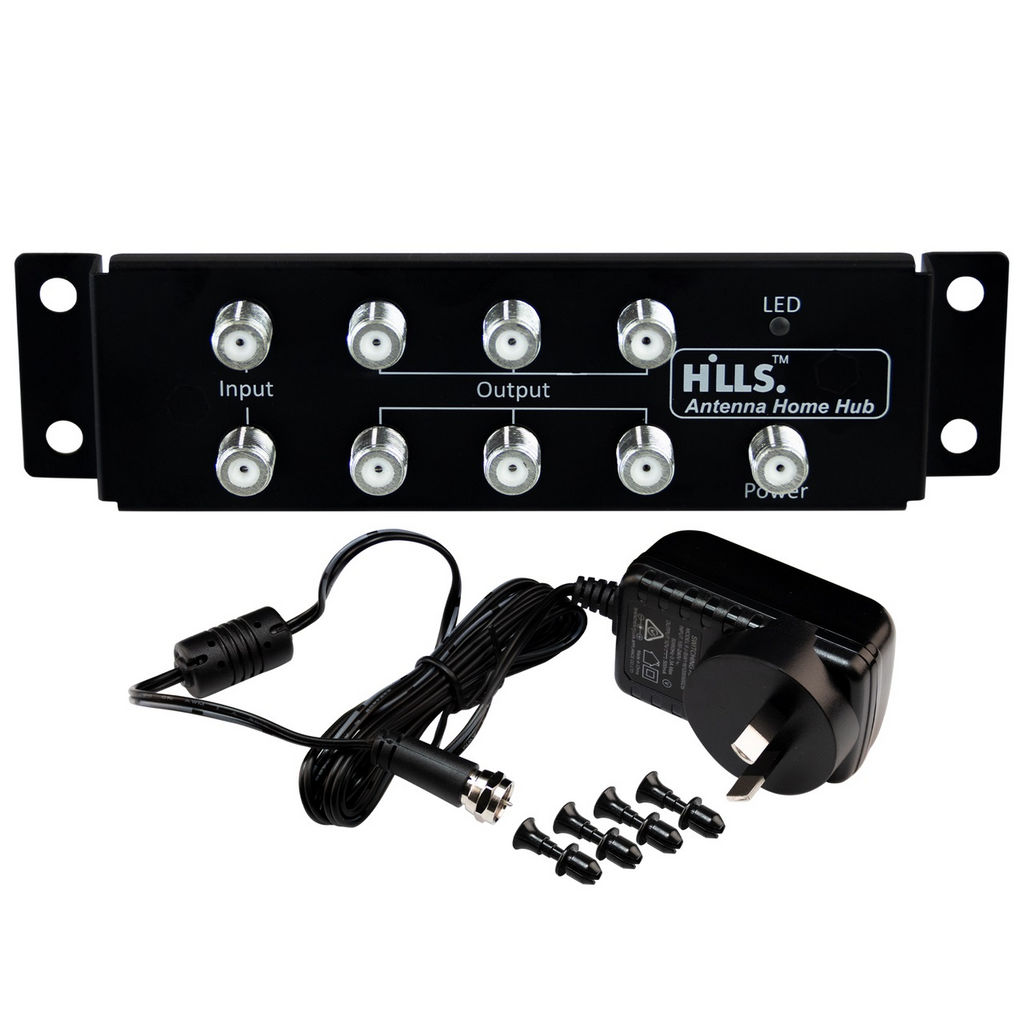

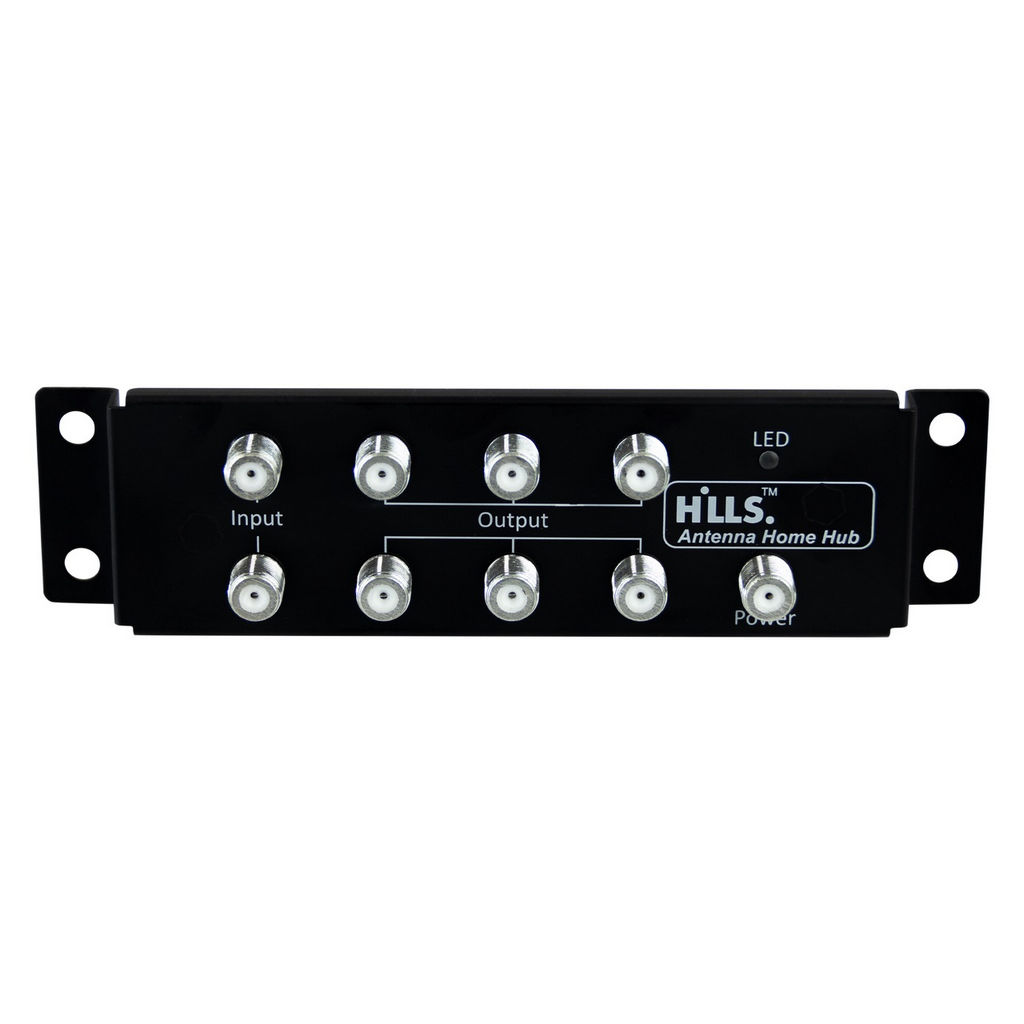

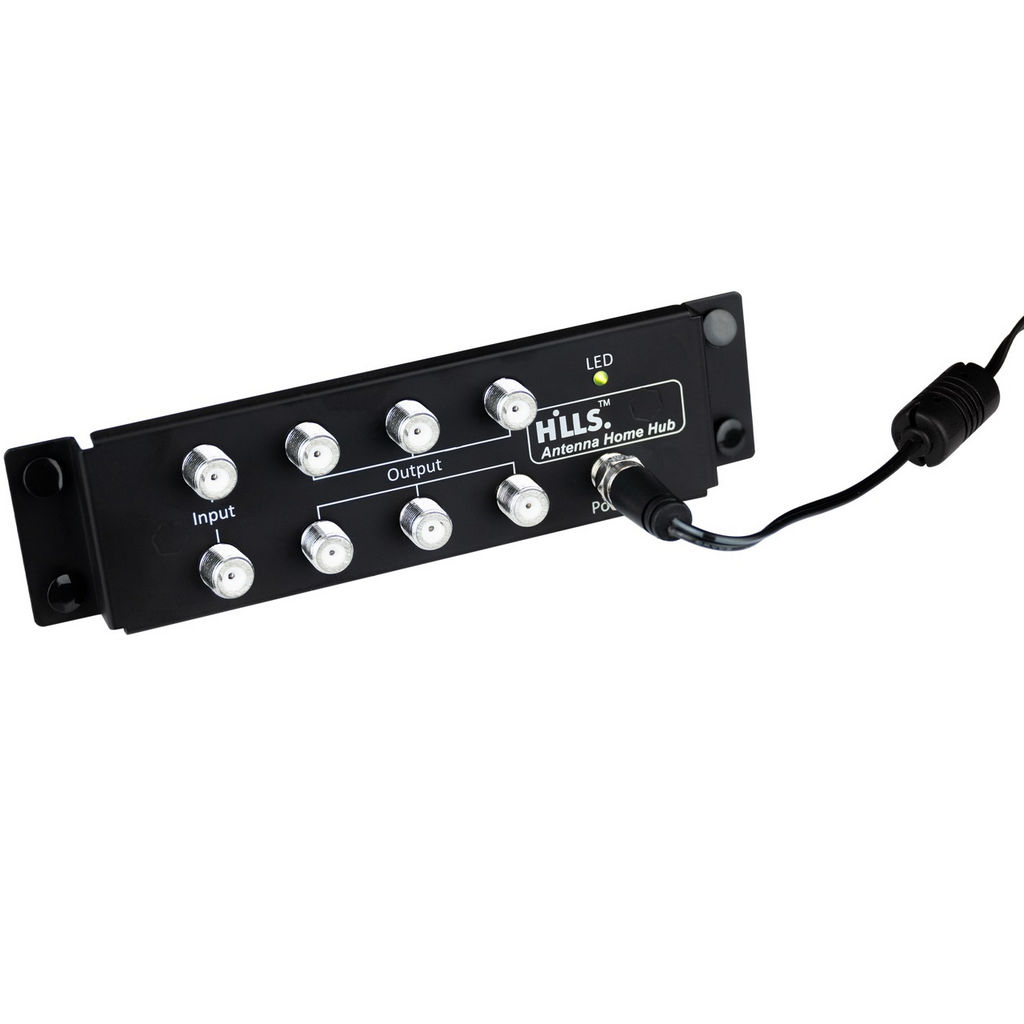

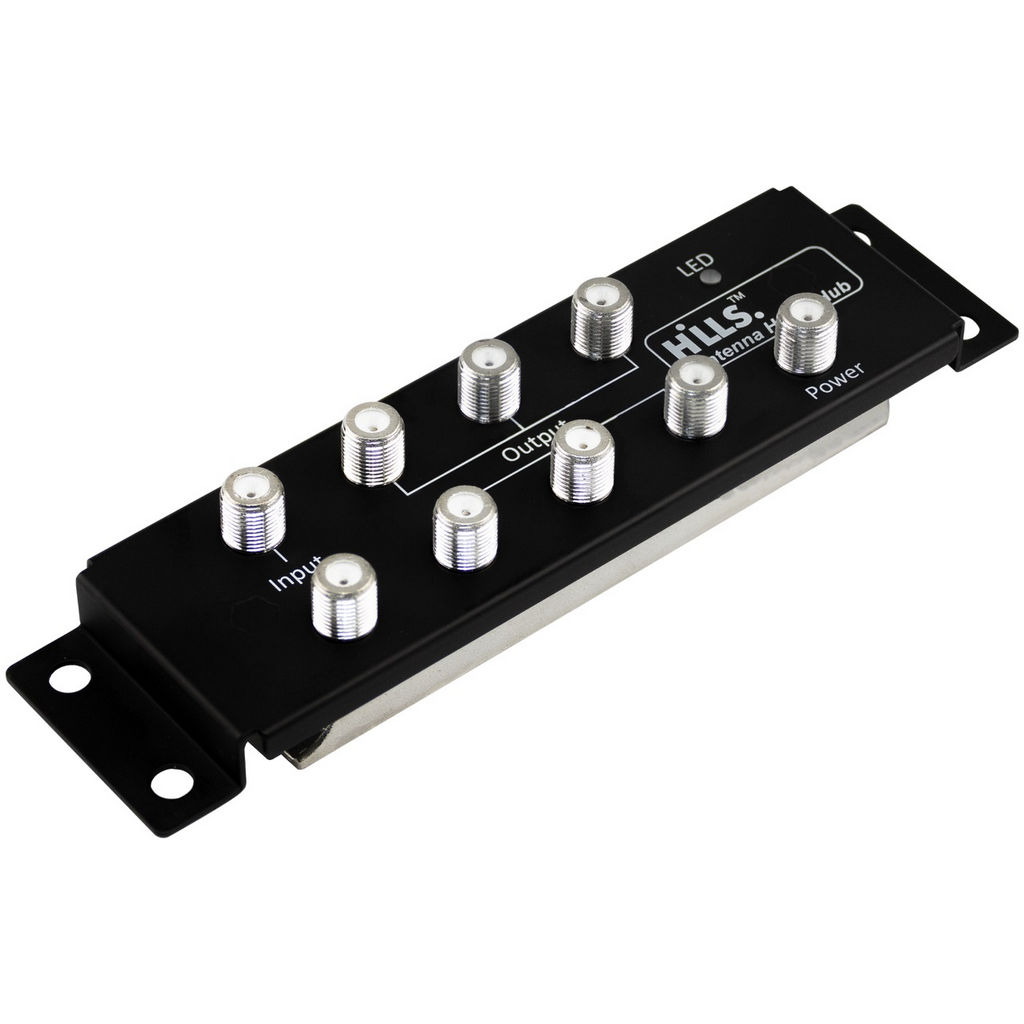

Hills Home Hub Active Splitter with power injector. 2 input to 6 outputs. Active to compensate for cable and splitter losses. Includes "F" Injector power pack.

The Hills Home Hub Active TV Splitter Module is used as part of the home video distribution infrastructure. The Active TV Splitter Module is designed to combine the antenna signal with an optional modulated signal and then rout to a maximum of six locations throughout the home.

Bandwidth: 40MHz to 1000MHz
Maximum Input Level: 85dBuV
Maximum Output Level: 100dBuV
Output Gain: 7dB
RF Return Loss >l0dB

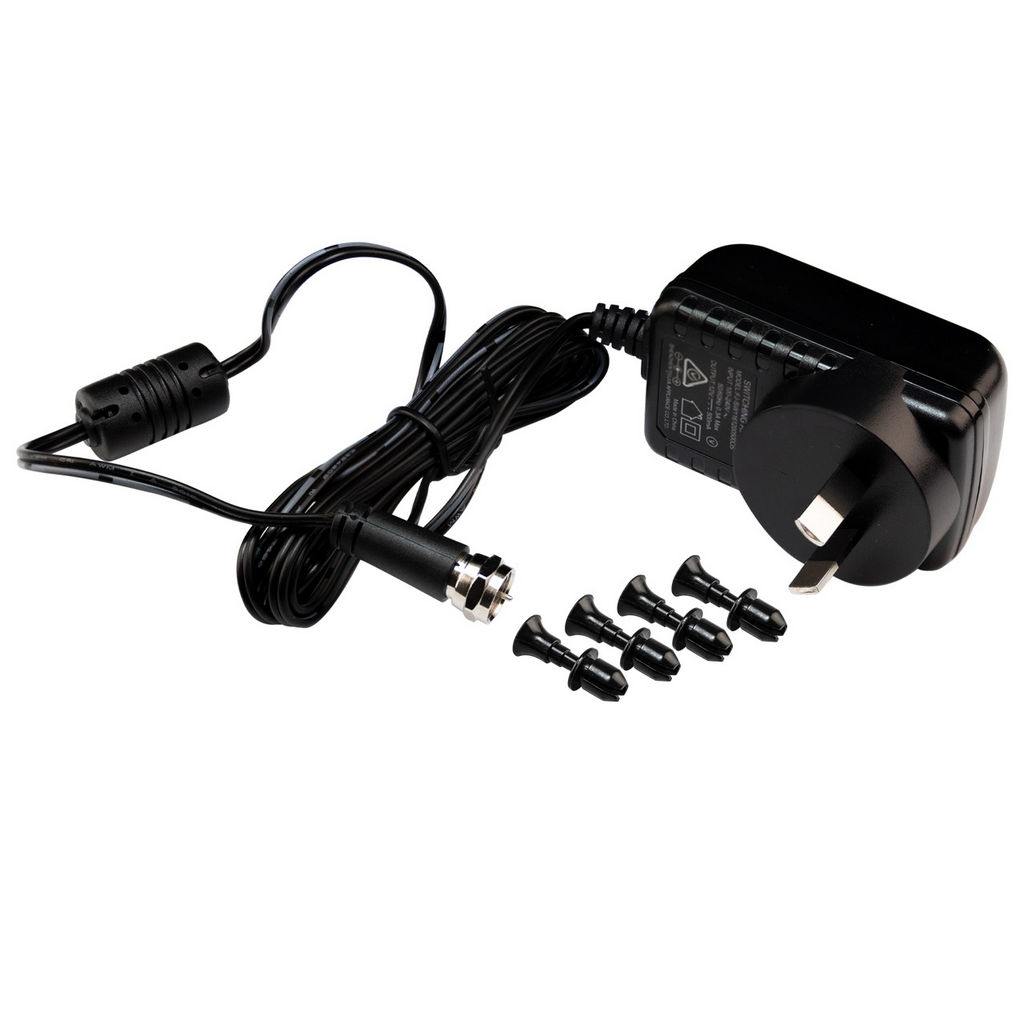

500mA 12VDC “F” Plug
Power-pack included
