PORTABLE RF TELECOMMUNICATIONS SPECTRUM ANALYZER 9

PORTABLE RF TELECOMMUNICATIONS SPECTRUM ANALYZER 9" PRO

$5895.00

- +

BUY NOW

Order Code: EXA-9

Availability: Out of stock. Back Order Item

ETA : PLEASE CALL

FM / DAB+ / TV / SAT / CATV / IP / WIFI / TELECOM, 30M-2700MHz

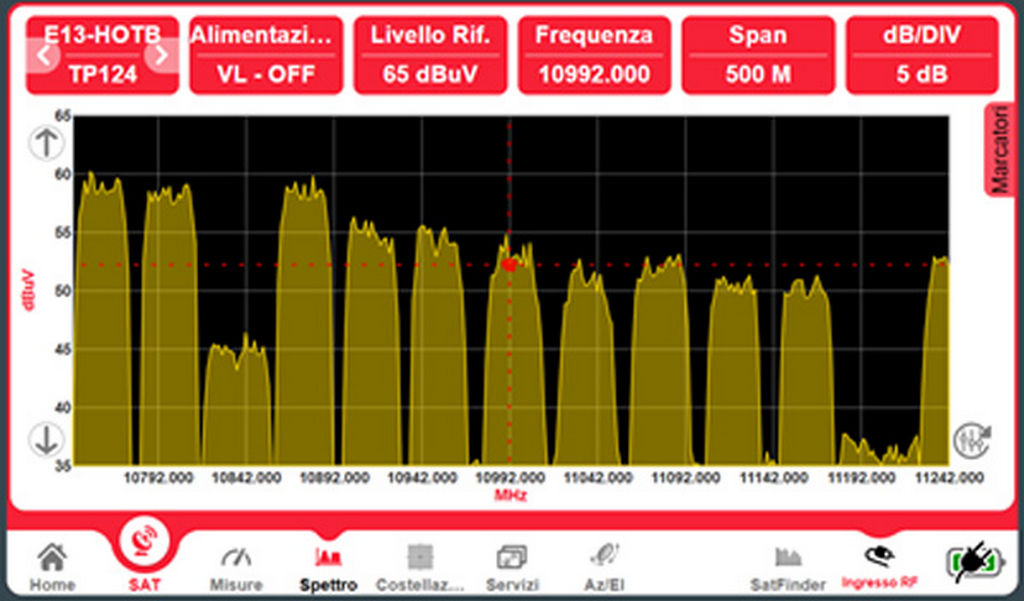

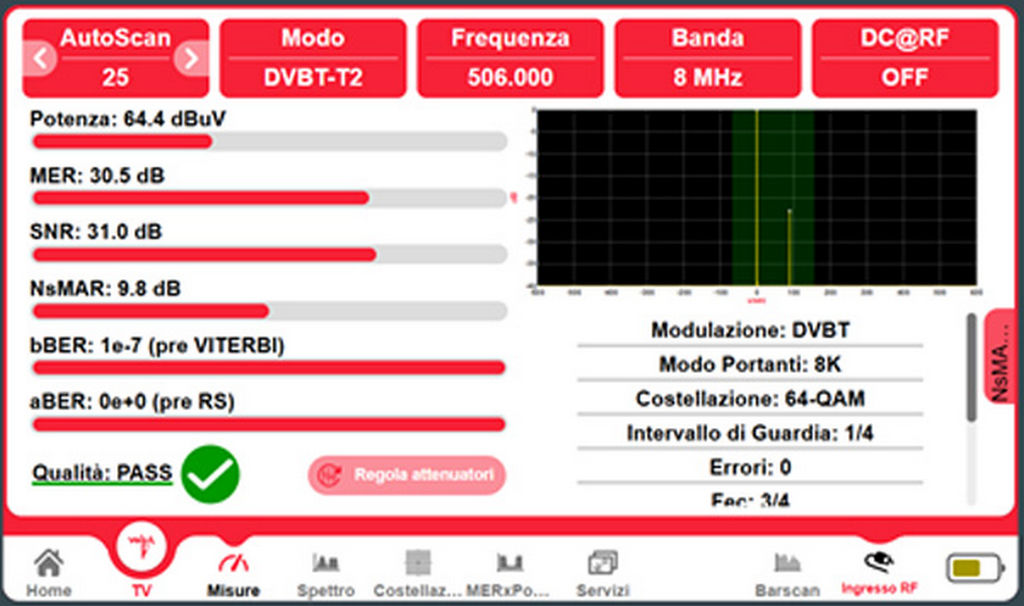

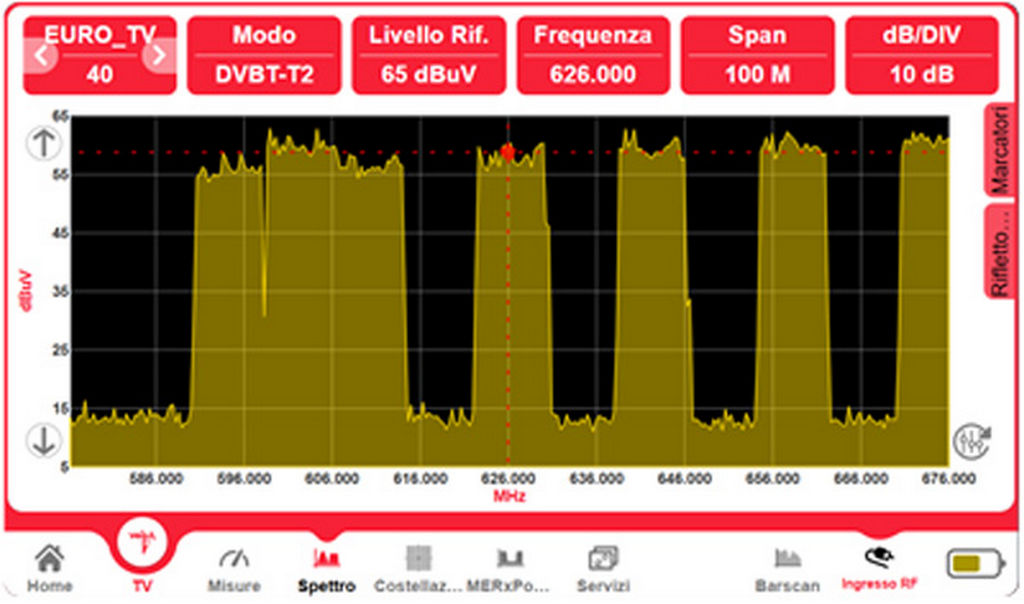

High‑performance, multi‑standard professional field analyzer with a 9” touchscreen. AUTODISCOVERY for instant identification of TV, SAT, CATV and IP signals. Provides advanced measurement tools including fast spectrum analysis, MER/BER, constellation, and integrated LAN and IP‑CCTV diagnostics for modern hybrid infrastructures.

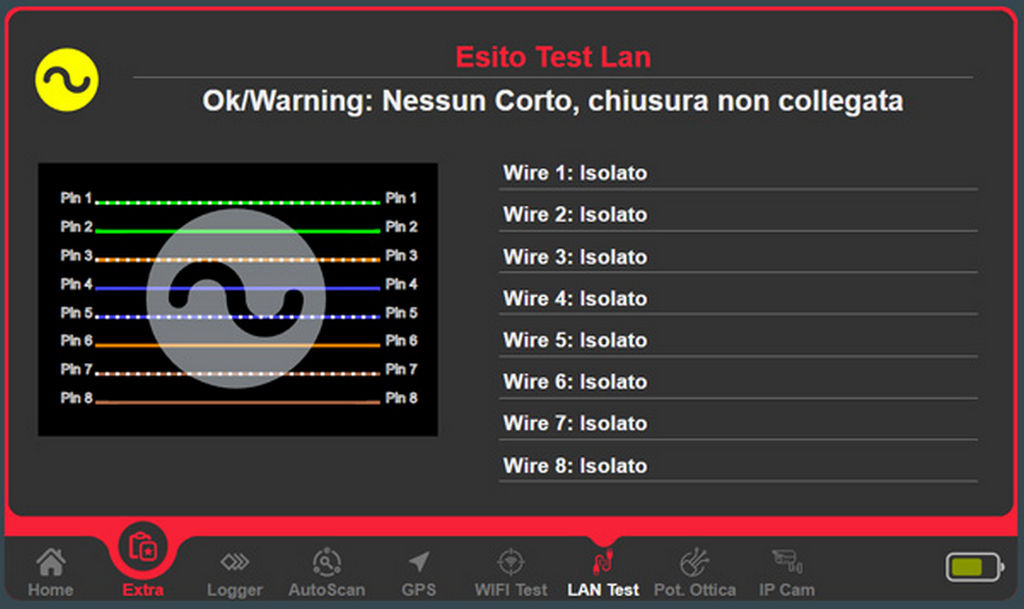

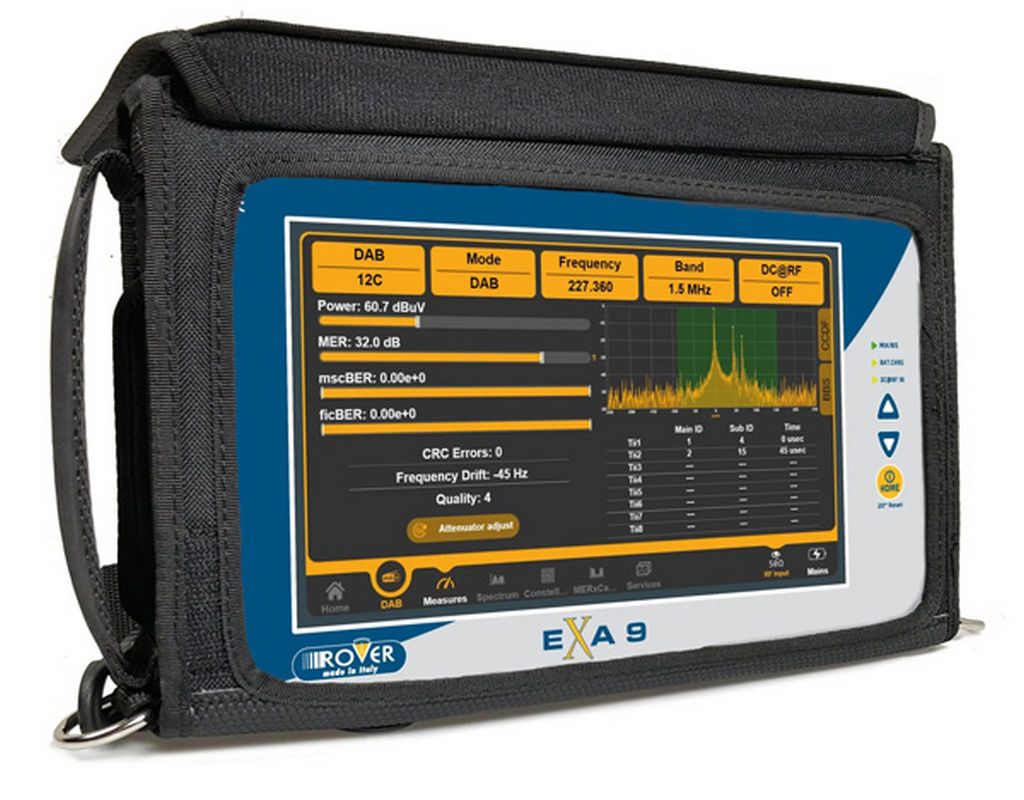

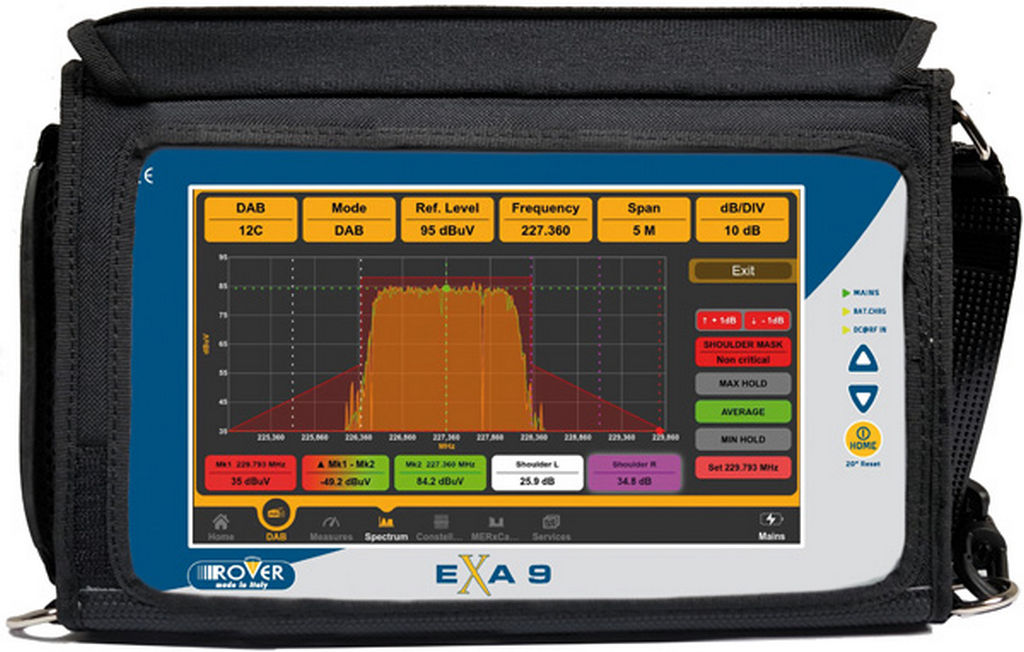

The Rover EXA 9 is a high‑performance, multi‑standard field analyser for broadcast, satellite, cable, and IP signal testing. It features a rugged metal chassis, a 9” capacitive touchscreen, and a 2 kg design for professional field use. The unit integrates ROVER AUTODISCOVERY for automatic signal identification, fast spectrum analysis, MER/BER measurements, constellation display, and real‑time echo analysis. It supports HEVC/H.265 decoding and includes LAN and IP‑CCTV diagnostic tools. A Li‑Po battery provides 2–4 hours of operation, and USB‑B connectivity enables PC access and web‑browser remote management, delivering a comprehensive SAT/TV/CATV measurement platform.

9” industrial‑grade capacitive TFT touch display
High performance multifunction ...

Read / Show More

Related Products for PORTABLE RF TELECOMMUNICATIONS SPECTRUM ANALYZER 9

Related Products : View Product Group Page

Found in Category : Test & Measure

Product Specs for PORTABLE RF TELECOMMUNICATIONS SPECTRUM ANALYZER 9" PRO

Description	File	Size
Datasheet	EXA-9.pdf	2573 KB
