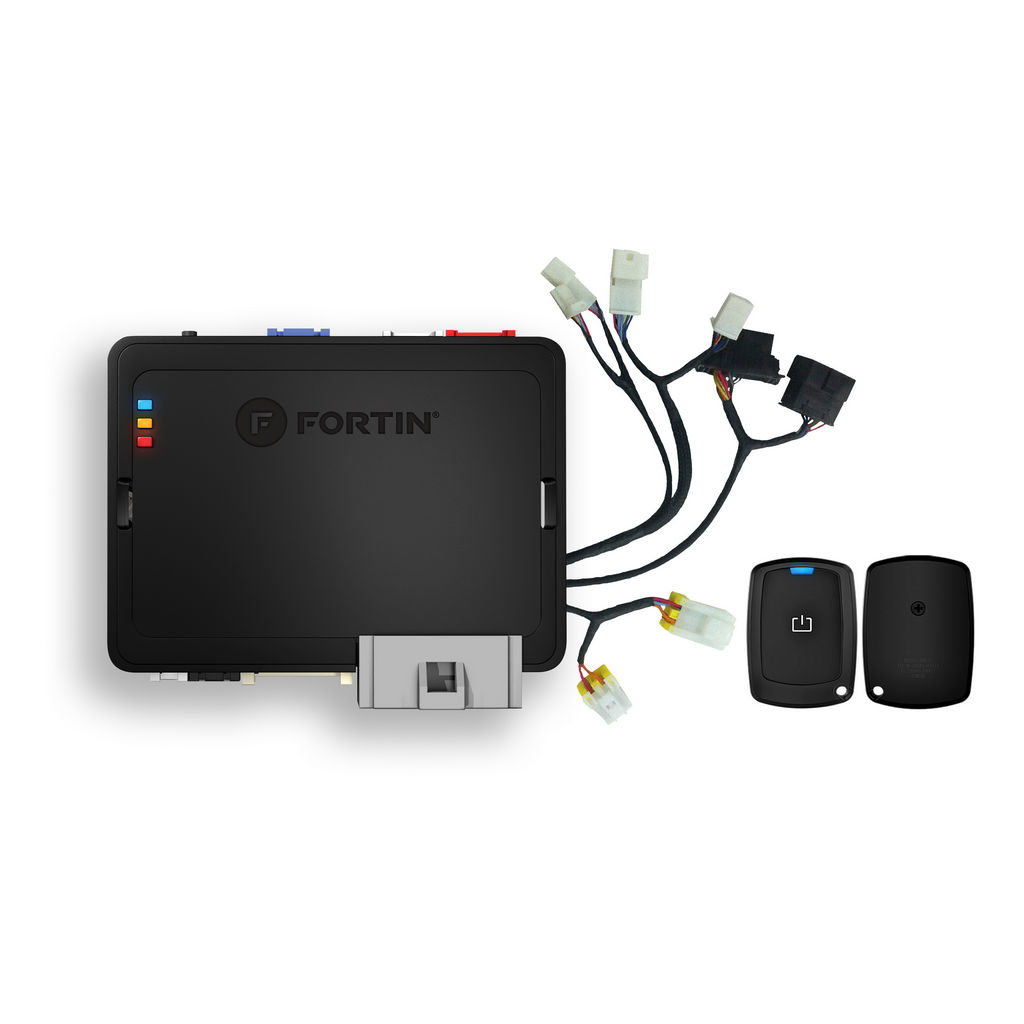

REMOTE START KIT TO SUIT NISSAN NAVARA NP300 2017-ON (PTS)

Vehicle Compatibility: Navara NP300 (2017-on) Push-To-Start vehicles.
Integration: Factory-fit all-in-one remote start, immobiliser bypass, door lock/unlock interface.
Communication Ports:
- 10 x Data I/O controllers.
- 3 x SAE-certified CAN-Bus networks.
- 2 x RS232 datalink ports.
Relays:
- 5 x High-power onboard relays.
- 1 x DPDT onboard relay.
Controllers:
- 3 x General purpose controllers (e.g., J1850, LIN, Class 2, encrypted key).
- 1 x Analog controller (0–12VDC @ 20mV steps).
Programming: Self-learning algorithm for automatic vehicle detection and configuration.
Connection System: Pre-wired quick-connect T-harness for seamless installation.
Additional Features:
- Customisable with Fortin FlashLink programmers.
- Works with compatible Fortin/EVO mobile or RF devices.
- Supports both automatic and manual transmission vehicles.
LED Indicators: 3 x Onboard LEDs for simplified programming and diagnostics
Important Information:
- The Remote Start Module must be flashed with the correct firmware for your specific vehicle before use. A FLINK4 or FLINKMOB programming tool is required (sold separately).
- The two remotes included in this kit must be used with this system for proper functionality. While the factory remote may be able to initiate remote start, it will not function to unlock the doors or turn off the vehicle once the engine is running.
- CANBUS wires must be hardwired at the BCM. Negative locking wires are located at drivers side kick panel.
