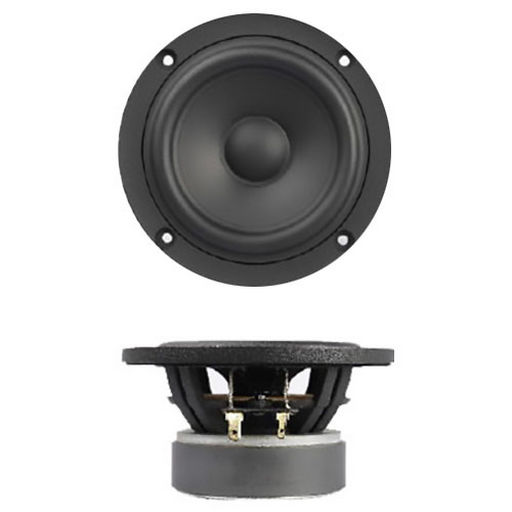

SB ACOUSTICS 4" MIDRANGE - MNRX-II
SB ACOUSTICS 4" MIDRANGE - MNRX-II
25mm Voice coil, Norex paper cone, rubber surround, ferrite motor, aluminium chassis
Proprietary cone material with natural fibres made in-house
Shortened voice coil optimised for pure midrange reproduction
High damping Butyl rubber surround for non-resonant sound character
Vented pole piece for reduced compression
Vented cast aluminium chassis for optimum strength and low compression
CCAW voice coil for reduced moving mass
Long life silver lead wires
Non-conducting fibre glass coil former for minimum damping
Nominal Impedance 4 Ω
DC resistance, Re 3.2 Ω
Voice coil inductance, Le 0.15 mH
Effective piston area, Sd 50 cm2
25mm Voice coil, Norex paper cone, rubber surround, ferrite motor, aluminium chassis
Proprietary cone material with natural fibres made in-house
Shortened voice coil optimised for pure midrange reproduction
High damping Butyl rubber surround for non-resonant sound character
Vented pole piece for reduced compression
Vented cast aluminium chassis for optimum strength and low compression
CCAW voice coil for reduced moving mass
Long life silver lead wires
Non-conducting fibre glass coil former for minimum damping
Nominal Impedance 4 Ω
DC resistance, Re 3.2 Ω
Voice coil inductance, Le 0.15 mH
Effective piston area, Sd 50 cm2
Voice coil diameter 25.4 mm
Voice coil height 9.4 mm
Air gap height 5 mm
Linear coil travel (p-p) 4.4 mm
Magnetic flux density 1.03 T
Magnet weight 0.4 kg
Net weight 0.92 kg
Free air resonance, Fs 63.5 Hz
Sensitivity (2.83V/1m) 90.5 dB
Mechanical Q-factor, Qms 4.19
Electrical Q-factor, Qes 0.35
Total Q-factor, Qts 0.32
Moving mass incl. air,Mms 4.2 g
Force factor, Bl 3.9 Tm
Equivalent volume, Vas 5.3 liters
Compliance, Cms 1.5 mm/N
Mechanical loss, Rms 0.4 kg/s
Rated power handling* 50 W
* IEC 268-5, T/S parameters measured on drive units that are broken in.
NRX2 is the new version of the NRX Series of speaker drivers. NRX is the "Norex" proprietary paper cone drivers by SB Acoustics. Through the development phases of some newer generation drivers with different cone materials (Carbon fiber, Polypropylene, Aluminium, Ceramic etc.) other improvements were made to the suspension system, damping, voice coil and coil former. All newer generations included a variety of subtle improvements summing-up over the years to quite a few improvements. The NRX2 takes the learning from many years of further development and brings all of that to the market as a new, but very similar driver series. NRX2 is more detailed, open, dynamic and with lower distortion. In most cases you can substitute NRX to/from NRX2 without the need for crossover or cabinet modifications.
