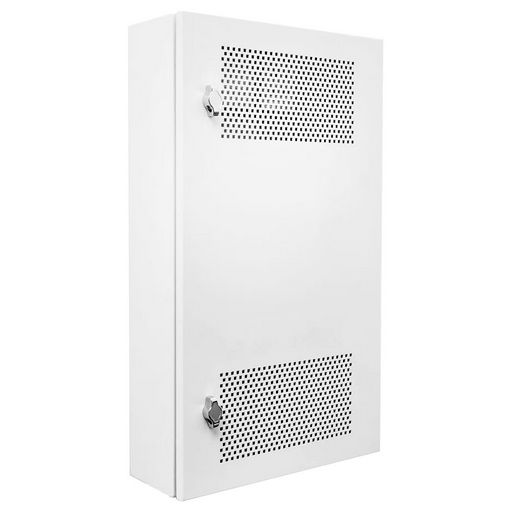

VERTICAL WALL MOUNT NBN COMPLIANT CABINET

VERTICAL WALL MOUNT NBN COMPLIANT CABINET

The vertical wall mount NBN compliant enclosure is designed for data communications, TV, and phone terminations. Made from 1.2mm galvanised steel, it features a vented door, dual pad lockable turn knobs, and removable gland plates. The enclosure is supplied with a preloaded double GPO, 6-gang CAT-6 outlet wall plates for easy installation, and a blank plate for future upgrades. It is compatible with OptiComm equipment and can be flush mounted with the optional recess trim frame kit.

The vertical wall mount NBN-compliant enclosure is designed to accommodate all necessary NBN hardware while also providing additional space for data communications, TV, and phone terminations.
This enclosure is constructed from 1.2mm galvanised steel and comes with a white powder coat ripple finish. It has a vented door with dual pad lockable turn knobs, a painted gear tray, and removable gland plates that simplify cable management.
The enclosure includes a preloaded double GPO, 6-gang CAT-6 outlet wall plates for easy installation, and a blank plate for future upgrades.
It is compatible with OptiComm equipment, and an optional recess trim frame kit is available for flush mounting.

Supplied with a double GPO, and 6-gang CAT6 outlet wal
The vertical wall mount NBN-compliant enclosure is designed to accommodate all necessary NBN hardware while also providing additional space for data communications, TV, and phone terminations.
This enclosure is constructed from 1.2mm galvanised steel and comes with a white powder coat ripple finish. It has a vented door with dual pad lockable turn knobs, a painted gear tray, and removable gland plates that simplify cable management.
The enclosure includes a preloaded double GPO, 6-gang CAT-6 outlet wall plates for easy installation, and a blank plate for future upgrades.
It is compatible with OptiComm equipment, and an optional recess trim frame kit is available for flush mounting.
- Supplied with a double GPO, and 6-gang CAT6 outlet wall plates.
- Includes a blank plate to allows for future expansions.
- Strong construction with powder coat ripple finish in white.
- WiFi friendly (as tested ~5% loss through cabinet).
- Vented door with 2x chrome padlockable knobs.
- 32mm knockouts top and rear for cable entry.
- Rear entry window for easy cable runs.
- Compliant to NBN Co NBN-DES-STD-0011.
- OptiComm approved.
- 700mm height. 400mm wide.
- Can be installed at frame stage.
- Optional flush frame kit (BBNBNFK) available.
