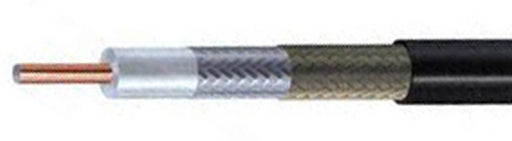

50Ω LMR100 COAX

Low loss RF cable, 0.46mm Solid BCCS conductor with 2.11mm tinned copper overall braid. 1.52mm Solid polyethylene dielectric & 1.65mm aluminium tape as outer conductor. .67mm Black PVC standard jacket. Replacement for RG316/RG174 because of low loss. Used in many application like WLL, GPS, LMR, Mobile antennas & many more.

*Available cut to length.

Low loss RF cable
0.46mm Solid BCCS conductor
2.11mm tinned copper overall braid
1.52mm Solid polyethylene dielectric
1.65mm aluminium tape as outer conductor
2.67mm Black PVC standard jacket
Replacement for RG316/RG174 low loss

Low loss RF cable, 0.46mm Solid BCCS conductor with 2.11mm tinned copper overall braid. 1.52mm Solid polyethylene dielectric & 1.65mm aluminium tape as outer conductor. .67mm Black PVC standard jacket. Replacement for RG316/RG174 because of low loss. Used in many application like WLL, GPS, LMR, Mobile antennas & many more.

*Available cut to length.

Low loss RF cable
0.46mm Solid BCCS conductor
2.11mm tinned copper overall braid
1.52mm Solid polyethylene dielectric
1.65mm aluminium tape as outer conductor
2.67mm Black PVC standard jacket
Replacement for RG316/RG174 low loss
