HDMI OVER HDBaseT EXTENDER 4K30 WITH IR - CYPRESS
HDMI OVER HDBaseT EXTENDER 4K30 WITH IR - CYPRESS
HDMI OVER HDBaseT EXTENDER 4K30 WITH IR - CYPRESS

HDMI OVER HDBaseT EXTENDER 4K30 WITH IR - CYPRESS

40M 4K30 SENDER OR RECEIVER WITH IR SEND/RETURN

  • The HDMI Extender over single CAT5e/6 incorporating IR signal transfer allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 metres (1080p) and supports High Definition Audio and 3D signals. Designed with HDBaseT technology for greater flexibility in custom installations with full HDMI and control signal transfer over a single CAT5e/6 cable.

    • HDMI with 3D, 4K×2K support, HDCP and DVI compliant
    • Complies with the HDBaseT-Lite class
    • Supports HDMI (including HDCP) over a single CAT5e/6 up to 60m
    • Full HD resolution support (1080p@60Hz/36-bit), 3D and 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
    • HDMI input up to 15

    • HDBaseT allows AV signals to be transmitted over single, standard Category 5e, 6 or 7 cable. Full HDBaseT 5Play allows for the transmission of HD video, audio, power-over-cable, 100BaseT Ethernet and control signals (such as RS-232, infrared, etc) all at the same time over a single Cat cable. Full HDBaseT is capable of transmission distances of up to 100 metres. HDBaseT 'Lite' is a reduced function version which will simultaneously transmit HD video, audio and control signals over distances of up to 60 metres. In addition, where a system features multiple AV Sources and multiple AV Displays - and transmission distances to end points vary; full HDBaseT 5Play and HDBaseT Lite receivers can be used together on the same system (as long as the Transmitter device is full HDBaseT). Read / Show More

    Found in Category : AV Extenders

    Filter products by one for more options below:

    CH-514TXL - CH-514TXL HD BASE T-LITE

    $439.00

    Order Code: CH-514TXL
    Availability : In Stock
    Product Details
    Add To Cart
    Order Code CH-514TXL
    Type Transmitter
    Input 1x HDMI
    Output 1x CAT5e/6/7
    4K Yes
    3D Yes
    Hd Audio Yes
    Ir Yes
    Rs-232 -
    Ethernet -
    Poe -
    Cable Length 60M (@ 1080p)
    Hdcp Yes

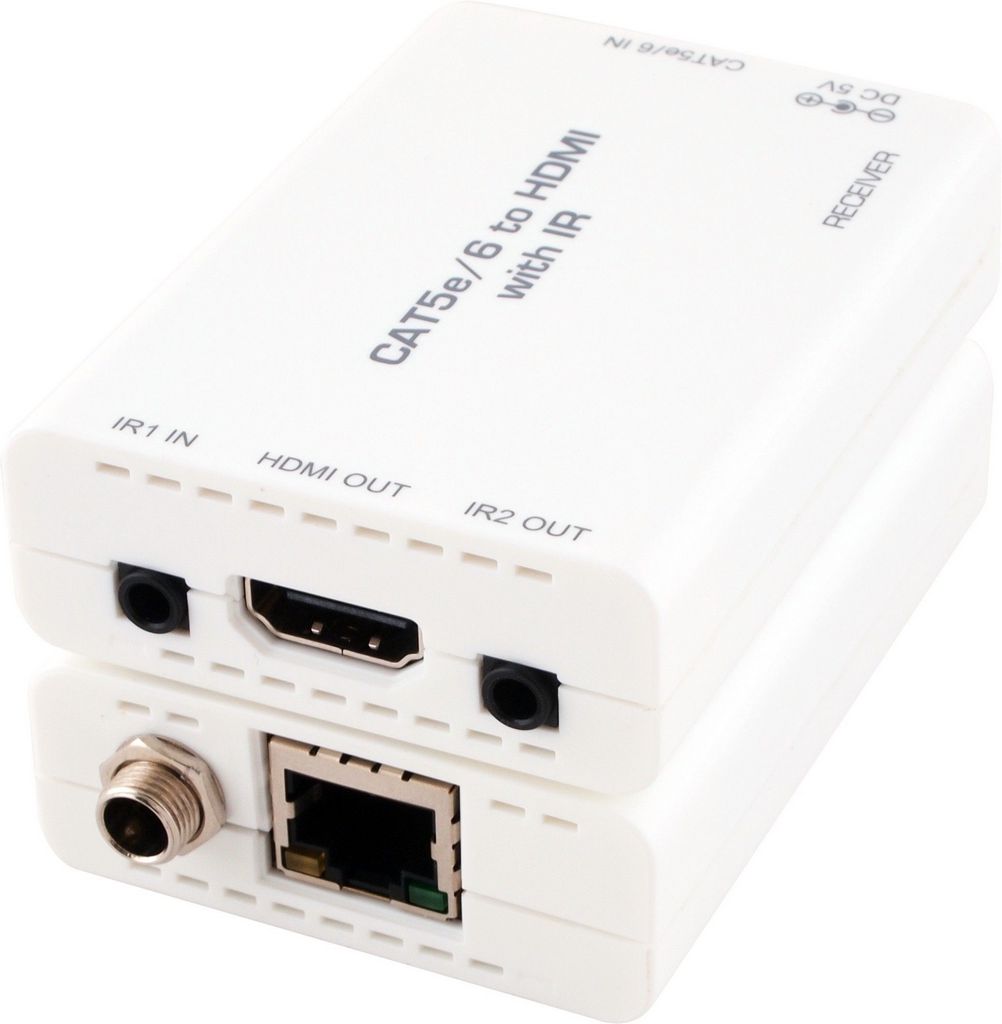

    CH-514RXL - CH-514RXL HD BASE T-LITE

    $379.00

    Order Code: CH-514RXL
    Availability : In Stock
    Product Details
    Add To Cart
    Order Code CH-514RXL
    Type Receiver
    Input 1x CAT5e/6/7
    Output 1x HDMI
    4K Yes
    3D Yes
    Hd Audio Yes
    Ir Yes
    Rs-232 -
    Ethernet -
    Poe -
    Cable Length 60M (@ 1080p)
    Hdcp Yes

    CH-514TXLN - CYPRESS PRODUCT

    Order Code: CH-514TXLN
    Product Details

    This Product has been replaced with: CH-514TXL

    Order Code CH-514TXLN
    Type Transmitter
    Input 1x HDMI
    Output 1x CAT5e/6/7
    4K Yes
    3D Yes
    Hd Audio Yes
    Ir Yes
    Rs-232 -
    Ethernet -
    Poe -
    Cable Length 60M (@ 1080p)
    Hdcp Yes

    CH-514RXLN - CYPRESS PRODUCT

    Order Code: CH-514RXLN
    Product Details

    This Product has been replaced with: CH-514RXL

    Order Code CH-514RXLN
    Type Receiver
    Input 1x CAT5e/6/7
    Output 1x HDMI
    4K Yes
    3D Yes
    Hd Audio Yes
    Ir Yes
    Rs-232 -
    Ethernet -
    Poe -
    Cable Length 60M (@ 1080p)
    Hdcp Yes

    Contact us for Bulk Buy and Project Based Pricing for HDMI OVER HDBaseT EXTENDER 4K30 WITH IR - CYPRESS



    CH-514TXL - Product Downloads

    Description File Size
    Manual CH-514TXL_manual.pdf 1956 KB
    CH-514RXL - Product Downloads

    Description File Size
    Manual CH-514RXL_manual.pdf 1956 KB
    CH-514TXLN - Product Downloads

    Description File Size
    Manual CH-514TXLN_manual.pdf 1596 KB
    CH-514RXLN - Product Downloads

    Description File Size
    Manual CH-514RXLN_manual.pdf 1596 KB

    Please contact us with your download requirements,e.g. User Manual, Data Sheet, etc and will get back to you.
