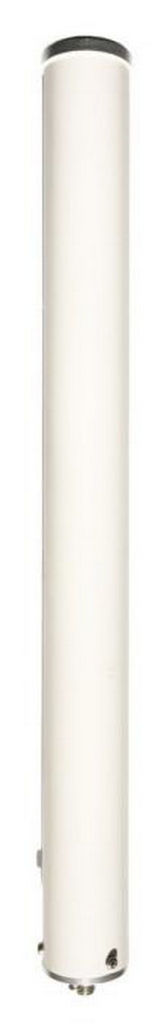

CEL-FI ANTENNA OMNI 6dB - BLACKHAWK

IDEAL FOR TELSTRA 4GX, OPTUS 4G, AND VODAFONE 4G

The Blackhawk Wideband Omni Antenna provides an ideal solution for 3G / 4G voice and data applications. With the rollout of new 3G and 4G frequencies such as 700 MHz 4GX and 2600 MHz 4G, traditional omni-directional antennas just haven’t been able to keep up. Blackhawk wideband omni-directional antennas provide high gain across the full cellular band 700 to 2700 MHz regardless of mounting direction, allowing quick and easy installation with no technical know-how required. The true wideband performance has been achieved through a clever engineering design utilising multi-sized collinear radiators and microwave-grade combiners, demonstrating consistently high gain with exceptional azimuthal stability.

6 dBi gain across lower bands 698-960 MHz
The Blackhawk Wideband Omni Antenna provides an ideal solution for 3G / 4G voice and data applications. With the rollout of new 3G and 4G frequencies such as 700 MHz 4GX and 2600 MHz 4G, traditional omni-directional antennas just haven’t been able to keep up. Blackhawk wideband omni-directional antennas provide high gain across the full cellular band 700 to 2700 MHz regardless of mounting direction, allowing quick and easy installation with no technical know-how required. The true wideband performance has been achieved through a clever engineering design utilising multi-sized collinear radiators and microwave-grade combiners, demonstrating consistently high gain with exceptional azimuthal stability.
- 6 dBi gain across lower bands 698-960 MHz
- 6 dBi gain across upper bands 1710-2700 MHz
- Ruggedised construction for Australian conditions
- 63x680mm Long UV-stable PVC construction
- Stainless steel L-bracket included
- Integrated N-Female connector
- ANT-BH-OM-204-10 includes a 10m LMR240 cable N-Male to SMA-Male
Frequency Range 698-960 MHz / 1710-2700 MHz
Input Impedance 50 Ω
Peak Gain 6 / 6 dBi
VSWR ≤2.5:1 / ≤2.5:1
Polarisation Vertical linear
Horizontal Beamwidth 360° (omnidirectional)
Vertical Beamwidth 60°
Maximum Input Power 100 W
Input Connector N Female
Cable (optional) 6m PT240 LSHF SMA Male
10m PT240 LSHF SMA Male
Lightning Protection DC Ground
Radiator Material Collinear copper elements
Radome Material UV stable PVC
Mounting Stainless Steel, pole mount Ø30-50 mm
Dimensions Ø63 × 680 mm
Weight 1.9 kg
Packing Dimensions 700 × 100 × 100 mm
Rated Wind Velocity 210 km/h
Operating Temperature -40 to +65°C
